Product Details
+

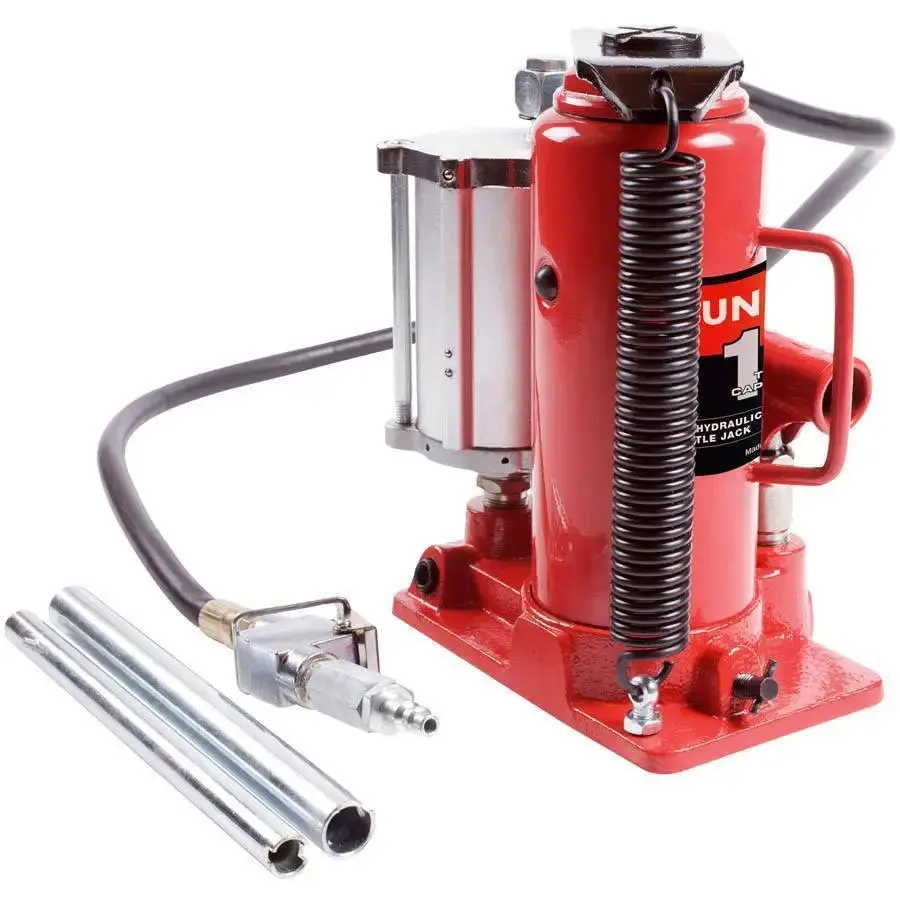

12 Ton Air/Hydraulic Bottle Jack
Features:
- Designed for heavy duty truck and trailer shop use, rail and bus work, building construction, mining, mobile home setup, oil field, roadside service calls, and power supplies for manufactured products
- High-performance air pump reduces lifting time. Additional manual pump feature is used when there is no access to compressed air.
- Ductile iron base for added strength.
- Electrostatic paint for rust protection.
- Heat treated extension screw increases low height to get full use of ram travel.
- Overload and bypass safety valves prevent the jack from being used beyond its rated capacity and ram over extension.
- Self-retracting ram.
- Wiper seals protect hydraulic system from contaminants.
- 52 inches Long airline and air valve with an integrated filter for remote use and protection from contaminants entering the air motor.
- 3 Piece interlocking handle sections measuring 25.5
- Grab handles for carrying and positioning.
Specs:
Base: 4.75 x 8Capacity (Tons) 12
Extension Screw Travel (in.) 3.15
Low Height (in.) 9.645
Max Height (in.) 18.898
Ram Travel (in.) 6.103
Saddle Diameter (in.) 1.5
Shipping Weight (lbs.) 31
