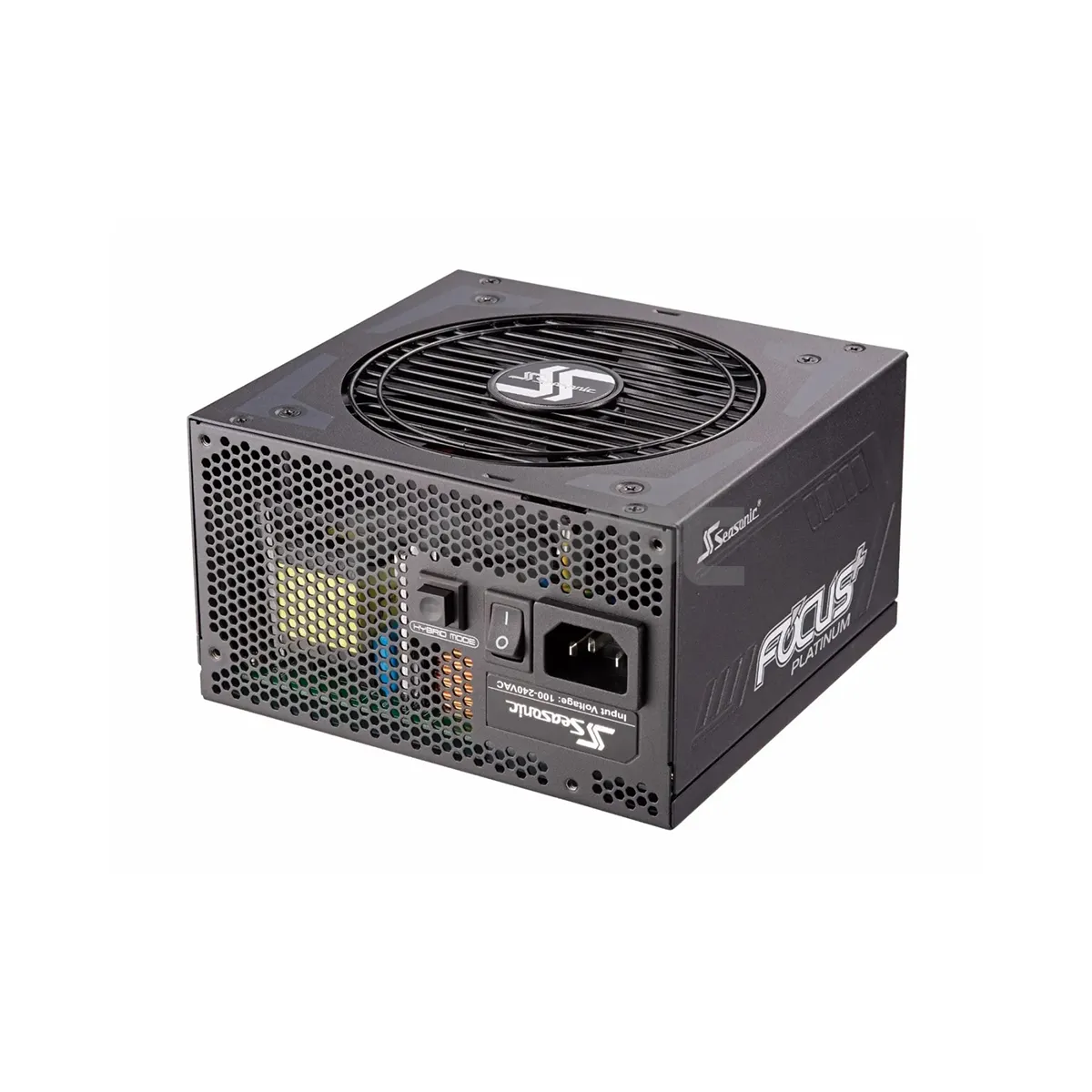

Seasonic Focus Plus 650W Fully Modular Power Supply Platinum

Product Description

Power your system with the Seasonic Focus Plus 650W Fully Modular Power Supply. Boasting 80 PLUS Platinum efficiency, it ensures optimal performance and energy savings. Its fully modular design offers easy cable management, while the compact size fits various builds. Reliable and quiet, perfect for high-performance PC.

Product Specifications

• 80PLUS® Platinum
• Cybenetics Efficiency Level ETA-A
• Cybenetics Noise Level Lambda A-
• Form Factor ATX/EPS
• Dimensions 140 × 150 × 86 mm

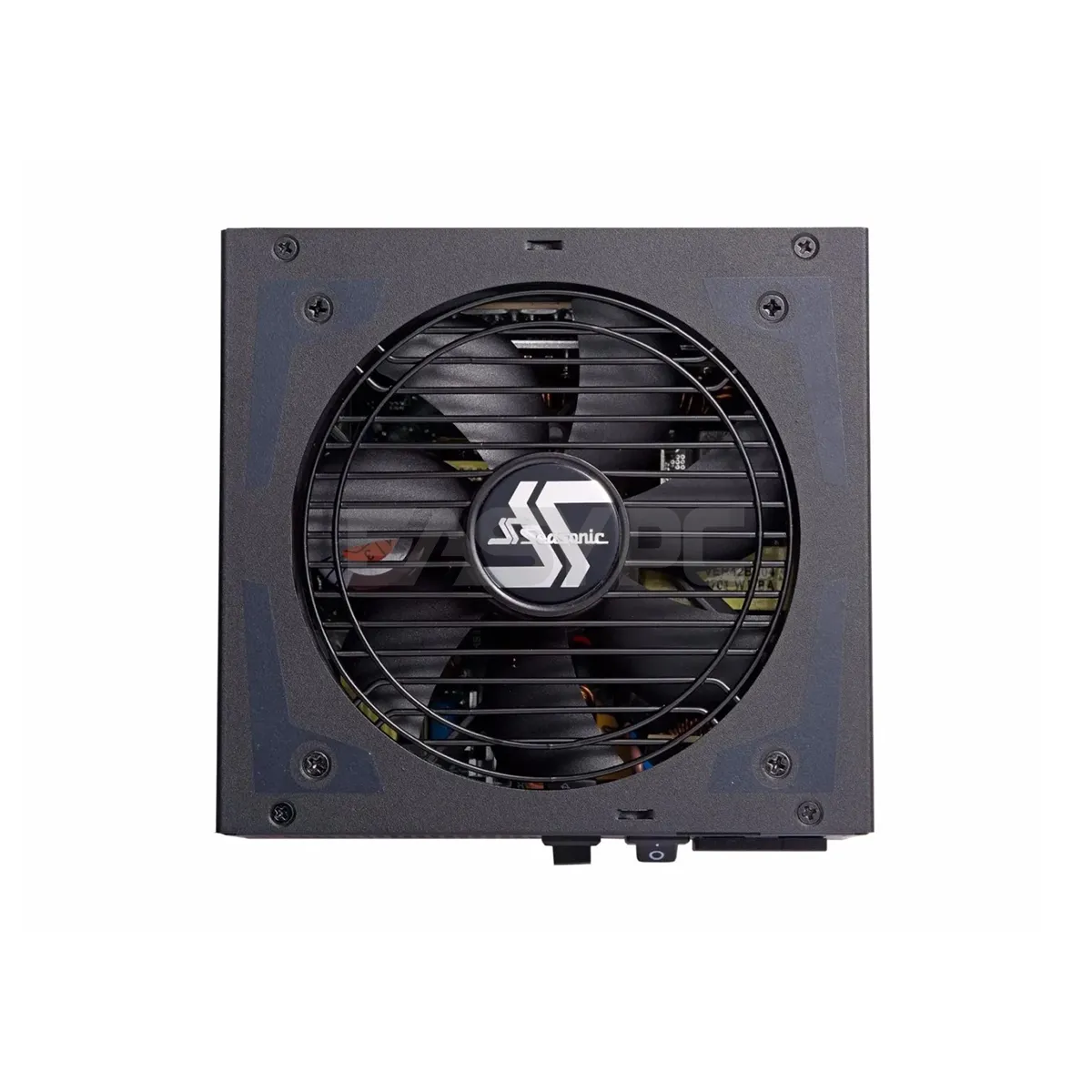

• Fan Information Fan Size 120 mm
• Fan Control S3FC (including Fanless Mode)
• Fan Bearing Fluid Dynamic Bearing
• Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH

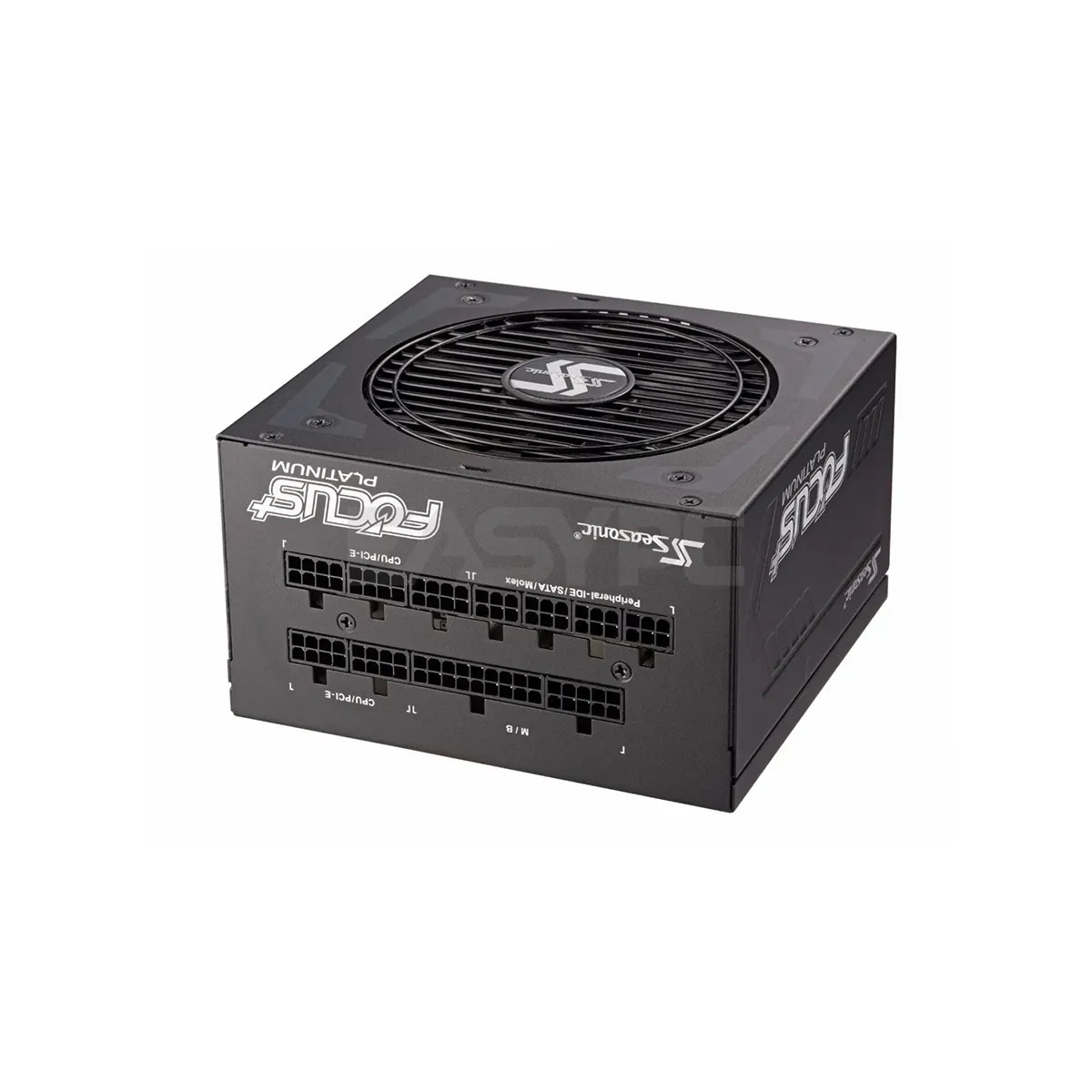

• Cable Information Modularity Fully Modular
• Cable type Flat black cables
• Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
• MTBF @ 25 °C, excl. fan 100,000 hours
• AC Input Full Range
• Protection OPP, OVP, UVP, OCP, OTP, SCP
• Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Warranty 10 Years
• Power Output
• AC Input 100 V - 240 V
• 9 - 4.5 A
• 50 Hz - 60 Hz
• DC Output Rail 3.3 V 5 V 12 V -12 V 5 VSB
• Maximum Power 20 A 20 A 54 A 0.3 A 3 A
• 100 W 648 W 3.6 W 15 W
• Total continuous power 650 W
