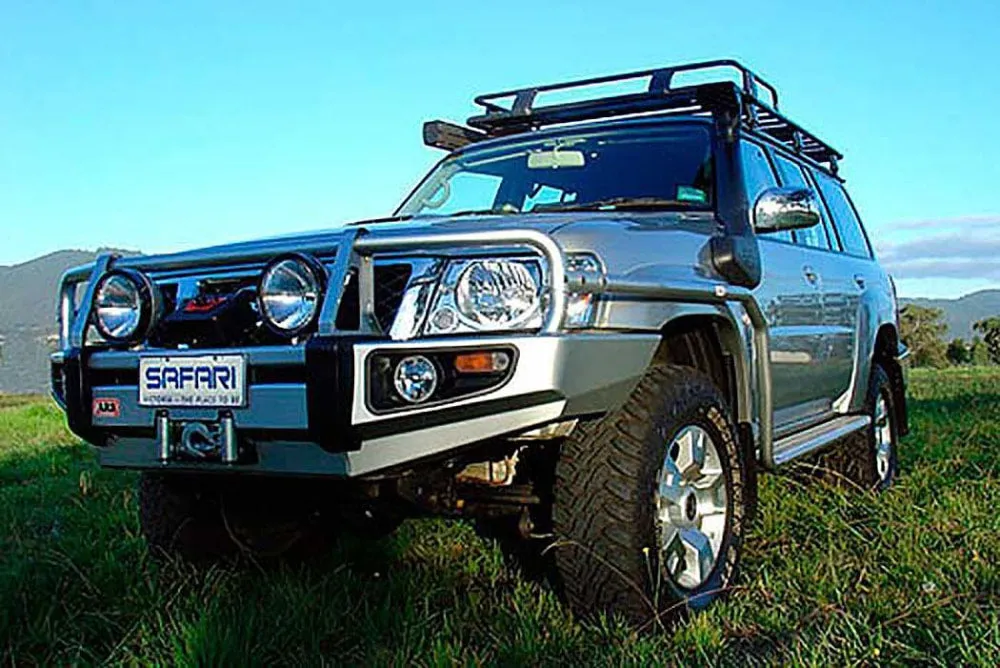

Safari 4x4 Snorkel Designed for the Nissan Patrol Series 4 ZD30-DDTI
The SS17HFB Nissan GU Patrol (Y61) 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of Series 4 ZD30DDT 3.0L Diesel engines.
With the huge air flow demands of each engine in the Nissan Series 4 ZD30DDT 3.0L Diesel GU Patrol (Y61), Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel Nissan GU Patrol (Y61) design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Nissan GU Patrol (Y61) 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Nissan GU Patrol (Y61) snorkel breezes through the toughest off-road conditions on the planet.
Safari Nissan GU Patrol (Y61) 4x4 Snorkel Features
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your Series 4 ZD30DDT 3.0L Diesel engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Nissan GU Patrol (Y61) 4WD Snorkel fitting guide with an accurate template for assisting with installation.
- They are manufactured in Australia from Safari’s own Recreational Spec. UV Stabilised Polyethylene.
- They have a five year warranty.
- They are NOT redesigned. The R-Spec. Safari Snorkel still uses the same moulds and Australian moulding processes for which it is rightly famous.
Specifications
Specifications
- Fits vehicle year to: 2014
- Fits vehicle year from: 2004
- Fits vehicle year from month: 09
- Fitment side: Passengers Side
- Fitting time approx: 2 Hrs
- Style: R-SPEC
- Material type: UV Stabilised Polyethylene
VEHICLES
| Make | Model | Series | Year From | Year To | Body | Engine | Engine Capacity | Variant | Drivetrain | Cylinders |
|---|---|---|---|---|---|---|---|---|---|---|
| NISSAN | PATROL | Y61 (GU) | 2004 | 2014 | Wagon | ZD30DDTi | 3.0L | D | 4 | |
| NISSAN | PATROL | Y61 (GU) | 2004 | 2014 | Wagon | ZD30DDTi | 3.0L | DX, ST, ST-L, ST-S, TI | Auto/Manual | 4 |
| NISSAN | PATROL | Y61 (GU) | 2004 | 2014 | Wagon | ZD30DDTi | 3.0L | DTi | 4 | |
| NISSAN | PATROL | Y61 (GU) | 2004 | 2014 | Wagon | ZD30DDTi | 3.0L | DTi | 4 | |
| NISSAN | PATROL | Y61 (GU) | 2004 | 2014 | Wagon | ZD30DDTi | 3.0L | D | 4 | |
| NISSAN | PATROL | Y61 (GU) | 2004 | 2014 | Cab Chassis | ZD30DDTi | 3.0L | D | 4 | |
| NISSAN | PATROL | Y61 (GU) | 2004 | 2014 | Cab Chassis | ZD30DDTi | 3.0L | DX LEAF SPRING | Manual | 4 |
| NISSAN | PATROL | Y61 (GU) | 2004 | 2014 | Cab Chassis | ZD30DDTi | 3.0L | DX, ST COIL SPRING | Manual | 4 |
| NISSAN | PATROL | Y61 (GU) | 2004 | 2014 | Cab Chassis | ZD30DDTi | 3.0L | DX LEAF SPRING | Manual | 4 |
| NISSAN | PATROL | Y61 (GU) | 2004 | 2014 | Cab Chassis | ZD30DDTi | 3.0L | ST COIL SPRING | Manual | 4 |
Safari Snorkel Nissan GU Patrol (Y61) 4x4 Kit - Parts List
Nissan GU Patrol (Y61) 4WD Snorkel for Series 4 ZD30DDT 3.0L Diesel Models - Safari Automotive Nissan GU Patrol (Y61) 4x4 Snorkel
Part Number SS17HFB
| ITEM | PART NO. |
DESCRIPTION |
QTY |
|---|---|---|---|
| 1 | 485-133-200 | BODY – SNORKEL (SS17HF) | 1 |
| 2 | 000-135-800 | 3 ½” AIR RAM ASSEMBLY | 1 |
| 3 | 485-124-200 | DUCT – INNER (SS17HF) | 1 |
| 4 | 485-123-500 | DUCT – CONNECTING (SS16HF) | 1 |
| 5 | 485-032-000 | BRACKET – UPPER MOUNTING | 1 |
| 6 | 000-002-100 | BOLT–HEX 6mm x 1.0mm x 14mm(SEMS) | 6 |
| 7 | 000-951-300 | SCREW – S/T 4.2mm x 16mm – S/S | 4 |
| 8 | 000-960 | INSERT – PLASTIC | 3 |
| 9 | 000-110 | STUD S/S 8mm x 1.25mm x 25mm O/L | 3 |
| 10 | 000-311-300 | WASHER – BODY 8mm x 30mm – S/S | 3 |
| 11 | 000-205-300 | NUT – NYLOC 8mm x 1.25mm – S/S | 3 |
| 12 | 000-806-250 | HOSE – RUBBER 82mm ID x 65mm | 1 |
| 13 | 000-909 | CLAMP – HOSE 80/100mm | 2 |
| 14 | 000-321 | WASHER – BODY 6mm x 20mm | 6 |
| 15 | 485-017-200 | TEMPLATE | 1 |
| 16 | 000-914/B | HOSE CLAMP – SIZE 56 (BLACK) | 1 |
