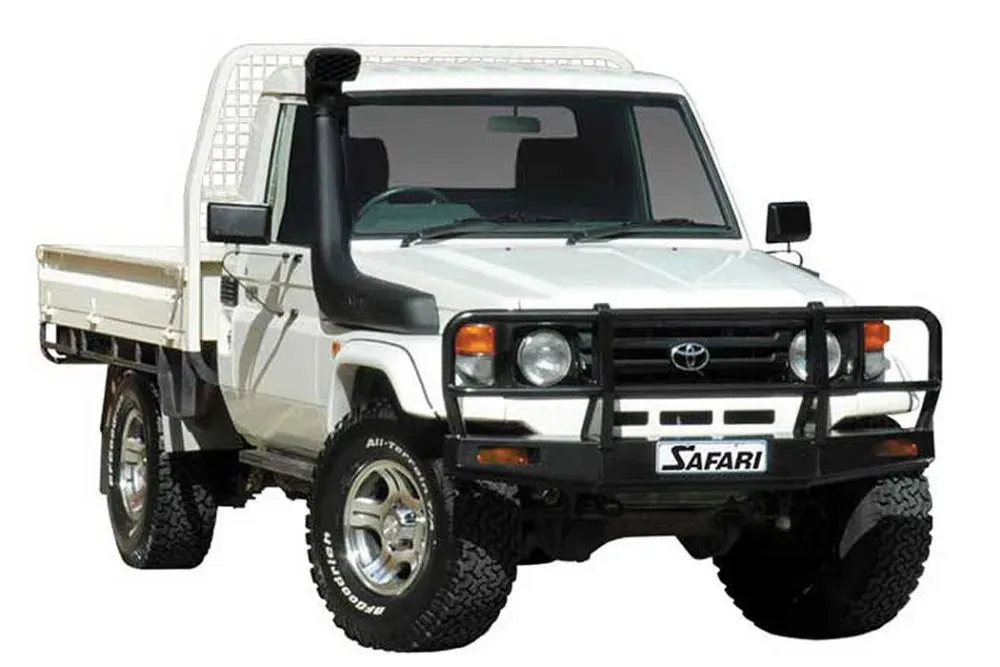

The SS70HP Safari Snorkel suitable for Toyota 70 Series Land Cruiser 4x4 is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 01/1985-03/2007 Onwards Diesel 1HZ & 1HD-FTE engines.

With the huge air flow demands of each engine in the Toyota 01/1985-03/2007 Onwards 1HZ & 1HD-FTE Diesel 70 Series Land Cruiser, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Snorkel suitable for Toyota 70 Series Land Cruiser 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the snorkel breezes through the toughest off-road conditions on the planet.

These snorkels are all new designs, tested on a custom-built flow bench, to flow 25% to 70% more air than the stock air cleaner housing flows from the vehicle manufacturer, whilst still providing a watertight raised air intake.

The Air Ram is designed to remove the maximum volume of water from the incoming air stream, while delivering the maximum airflow to your vehicle’s engine.

By rotating the air ram to face away from the prevailing wind/direction of motion, the air ram delivers additional protection from the elements.

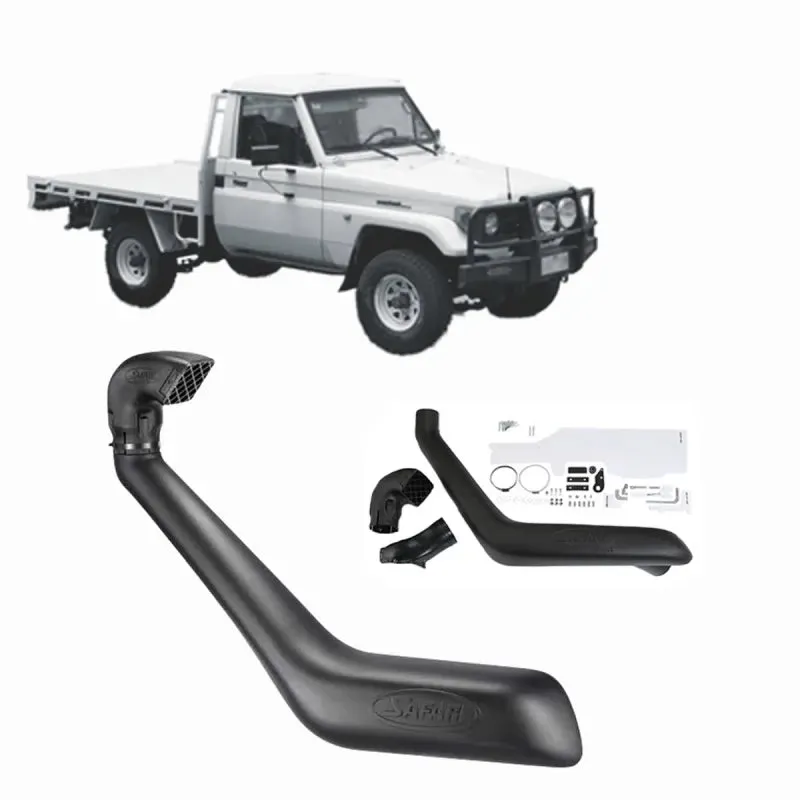

Safari Snorkel Kit - ARMAX. 70 Series with factory snorkel (narrow nose). Only fits 1HZ / 1HD-FTE engines.

• Safari’s own Industrial Spec UV Stabilised Polyethylene
• Safari’s rounded style Air Ram; however with minimum 4” (101.6mm) neck and an optimised air flow, low restriction grill
• Design and flow tested by Safari's in house engineers for maximum performance
• Australian designed, moulded and manufactured

• Specifically designed to replace the factory snorkel that is proven to not be watertight.
• Increased airflow for your 01/1985-03/2007 Onwards 4.2L 1HZ & 1HD-FTE Diesel engines
• Water separating air ram design to remove water from the air stream
• Durable and UV stable snorkel and air ram for added strength
• Comprehensive Snorkel fitting guide suitable for Toyota 70 Series Land Cruiser 4WD with an accurate template for installation.
• Lifetime Warranty

• Material Type: UV Stabilised Polyethylene
• Fitment Side: Drivers Side
• Style: ARMAX
• Model: SS70HP
• Fitting Time Approx: 3 Hr

SS70HP Compatible Vehicle

Make	Model	Series	Year From	Year To	Body	Notes	Engine	Engine Capacity	Variant	Transmission	Cylinders
TOYOTA	LANDCRUISER	78 Series	1999	2001	TROOP CARRIER		1H-Z	4.2L	HZJ78R	MANUAL	6
TOYOTA	LANDCRUISER	79 Series	1999	2007	SINGLE CAB		1H-Z	4.2L	HZJ79R		6
TOYOTA	LANDCRUISER	73 Series	1990	1999	HARD TOP		1H-Z	4.2L	HZJ73R	MANUAL	6
TOYOTA	LANDCRUISER	79 Series	2001	2007	SINGLE CAB		1HD-FTE	4.2L	HDJ79R	MANUAL	6
TOYOTA	LANDCRUISER	75 Series	1990	1999	UTE		1H-Z	4.2L	HZJ75R	MANUAL	6
TOYOTA	LANDCRUISER	78 Series	1990	2007	TROOP CARRIER		1H-Z	4.2L	HZJ78R		6
TOYOTA	LANDCRUISER	78 Series	1999	2007	TROOP CARRIER		1H-Z	4.2L	HZJ78R		6
TOYOTA	LANDCRUISER	78 Series	2001	2007	TROOP CARRIER		1HD-FTE	4.2L	HDJ78R	MANUAL	6
TOYOTA	LANDCRUISER	75 Series	1990	1999	HARD TOP		1H-Z	4.2L	HZJ75R		6
TOYOTA	LANDCRUISER	70 Series	1991	1992	HARD TOP		1H-Z	4.2L	HZJ70R	MANUAL	6
TOYOTA	LANDCRUISER	70 Series	1991	1992	HARD TOP		1H-Z	4.2L	HZJ70R	MANUAL	6
TOYOTA	LANDCRUISER	78 Series	2001	2007	TROOP CARRIER		1HD-FTE	4.2L	HDJ78R	MANUAL	6
TOYOTA	LANDCRUISER	78 Series	2001	2007	WAGON		1HD-FT	4.2L	HDJ78R		6
TOYOTA	LANDCRUISER	75 Series	1990	1999	UTE		1H-Z	4.2L	HZJ75R		6
TOYOTA	LANDCRUISER	79 Series	2001	2007	SINGLE CAB		1HD-FTE	4.2L	HDJ79R		6
TOYOTA	LANDCRUISER	75 Series	1990	1999	HARD TOP		1H-Z	4.2L	HZJ75R	MANUAL	6
TOYOTA	LANDCRUISER	79 Series	1999	2007	SINGLE CAB		1H-Z	4.2L	HZJ79R	MANUAL	6
TOYOTA	LANDCRUISER	79 Series	1990	2007	SINGLE CAB		1H-Z	4.2L	HZJ79R		6
TOYOTA	LANDCRUISER	79 Series	2001	2007	SINGLE CAB		1HD-FTE	4.2L	HDJ79R	MANUAL	6
TOYOTA	LANDCRUISER	78 Series	1999	2007	TROOP CARRIER		1H-Z	4.2L	HZJ78R	MANUAL	6
