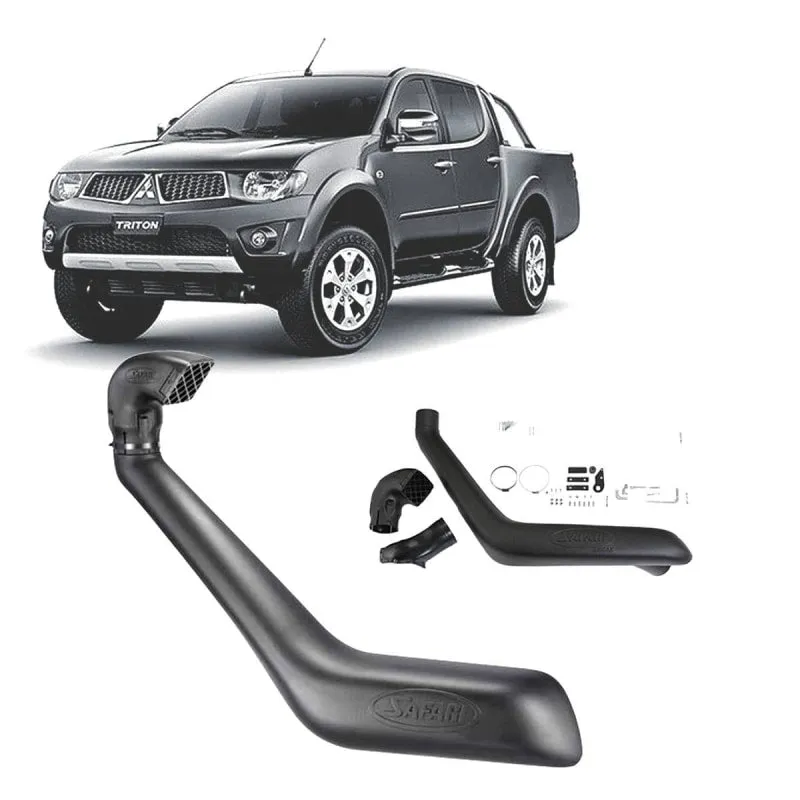

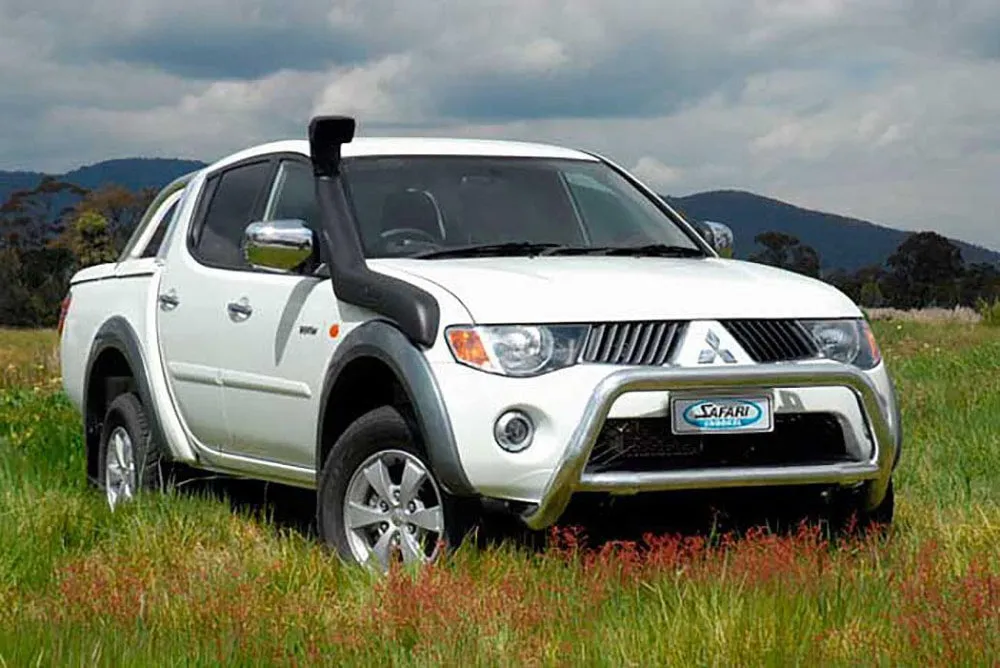

The SS661HF Mitsubishi Triton 4x4 Snorkel Kit is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of ML 3.2L Diesel and MN 2.5L Diesel engines.

With the huge air flow demands of each engine in the Mitsubishi ML 3.2L Diesel Triton, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Mitsubishi Triton design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Mitsubishi Triton 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Mitsubishi Triton snorkel breezes through the toughest off-road conditions on the planet.

• Safari Automotive Australian designed, moulded and manufactured
• Raised air intake to prevent your engine from ingesting harmful elements
• Increased airflow for your ML 3.2L Diesel & MN 2.5L Diesel engines
• Water separating air ram design to remove water from the air stream
• Durable and UV stable snorkel and air ram for added strength
• Comprehensive Mitsubishi Triton 4WD Snorkel fitting guide with an accurate template for assisting with installation.

Safari V-Spec snorkels are the traditional Safari Snorkel range.

Safari Snorkel Kit - V-SPEC. ML & MN series. Only fits 4M41 / 4D56 engines.

Make	Model	Series	Year From	Year To	Body	Engine	Engine Capacity	Variant	Drivetrain	Cylinders
MITSUBISHI	TRITON	ML	2006	2015	Cab Chassis	4M41	3.2L	GLX	Manual	4
MITSUBISHI	TRITON	ML	2006	2015	Ute	4M41	3.2L	GLX, GLX-R/VR, GLS	Manual	4
MITSUBISHI	TRITON	ML; MN	2006	2015	Ute	4M41	3.2L	DI-D		4
MITSUBISHI	TRITON	ML; MN	2006	2015	Cab Chassis	4M41	3.2L	DI-D		4
MITSUBISHI	TRITON	ML	2006	2015	Ute	4M41	3.2L	GLX, GLX-R, GLS	Auto	4
MITSUBISHI	TRITON	ML	2006	2015	Cab Chassis	4M41	3.2L	GLX	Auto/Manual	4
MITSUBISHI	TRITON	ML	2006	2015	Ute	4M41	3.2L	GLX, GLX-R/VR	Manual	4
MITSUBISHI	TRITON	ML	2006	2015	Ute	4M41	3.2L	GLX, GLX-R, GLS	Auto	4
MITSUBISHI	TRITON	MN	2006	2015	Ute	4D56T	2.5L	GL-R, GLX-R, ACTIV	Manual	4
MITSUBISHI	TRITON	MN	2006	2015	Ute	4D56T	2.5L	GL-R, ACTIV	Auto	4
MITSUBISHI	TRITON	MN	2006	2015	Ute	4D56T	2.5L	GLS, GLX-R	Auto	4
MITSUBISHI	TRITON	MN	2006	2015	Ute	4D56T	2.5L	GLX	Manual	4
MITSUBISHI	TRITON	MN	2006	2015	Cab Chassis	4D56T	2.5L	GL, GLX		4
MITSUBISHI	TRITON	MN	2006	2015	Cab Chassis	4D56T	2.5L	GL, GLX		4

ITEM	PART NO.	DESCRIPTION	QTY
1	525-133-000	BODY - SNORKEL (SS660HF)	1
2	000-135-800	3 ½" AIR RAM ASSEMBLY	1
3	525-032-000	BRACKET - UPPER MOUNTING	1
4	000-002-100	BOLT - HEX - 6mm x 1.0 x 14mm (SEMS)	3
5	000-951	SCREW - S/T - 4.2mm x 13mm	3
6	000-960	INSERT - PLASTIC	3
7	000-110	STUD - S/S - 8mm x 1.25 x 25mm O/L	8
8	000-352	WASHER - BODY - 8mm x 45mm - S/S	4
9	000-311-300	WASHER - BODY - 8.5mm x 32mm - S/S	4
10	000-205-300	NUT - NYLOC - 8mm x 1.25 - S/S	8
11	525-024-200	HOSE - AIR ENTRY	1
12	525-023-200	ADAPTOR - AIR CLEANER	1
13	000-958-300	POP RIVET - 4.8mm x 12mm	3
14	000-909	CLAMP - HOSE - 80/100mm	2
15	525-098-200	BOTTLE - RADIATOR OVERFLOW - PLASTIC	1
16	525-098-300	CAP - OVERFLOW BOTTLE - 38mm ID - WHITE	1
17	525-096-000	BRACKET - OVERFLOW BOTTLE MOUNTING	2
18	000-1018-300	BOLT - B/H - 5mm x 0.8 x 8mm - S/S	2
19	000-951-500	SCREW - S/T - 4.8mm x 16mm	2
20	000-917-100	CLAMP - SPRING - 5/16"	1
21	000-530	ADAPTOR - HOSE - 8mm/8mm	1
22	000-838-035	HOSE - RADIATOR OVERFLOW EXTENSION	1
23	000-987-100	CABLE TIE - 2.5mm x 100mm	3
24	000-914/B	CLAMP - HOSE - SIZE 56 (BLACK)	1
25	525-017-000	TEMPLATE - SNORKEL BODY	1
