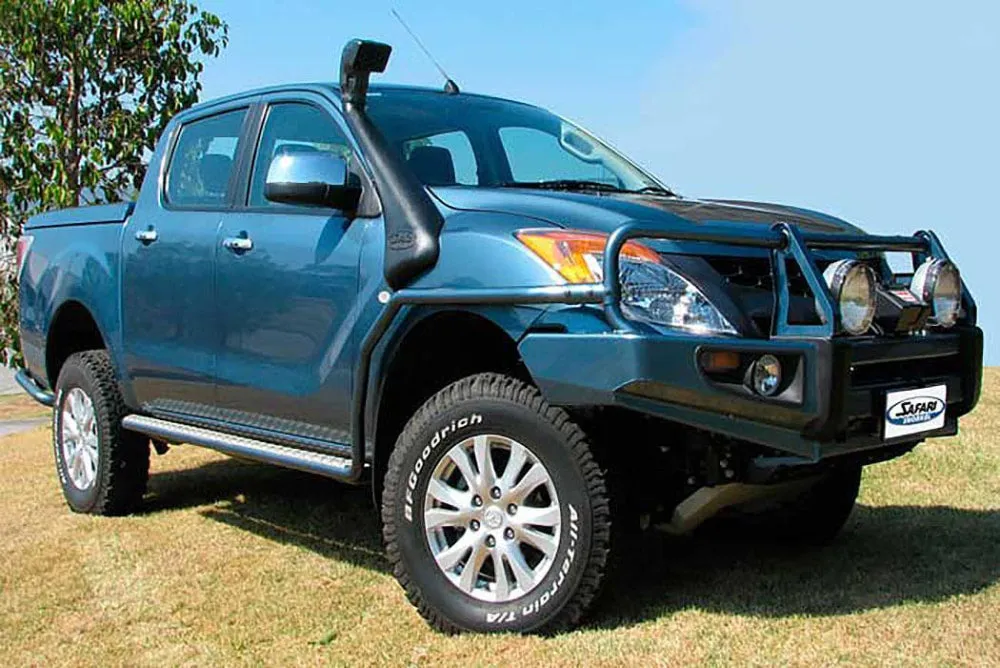

Safari Snorkel Kit Designed for Mazda BT-50 (11/2011 - 12/2019) | SS985HF
Upgrade your Mazda BT-50 (11/2011 - 12/2019) with the Safari SS985HF Snorkel Kit, tailored to enhance the performance and durability of your 4x4. This snorkel kit is specifically designed for the 08/2011 Onwards 3.2L Diesel engines, offering a significant improvement in air intake quality and engine protection.
The Safari snorkel system is engineered to meet the high air flow demands of the Mazda 3.2L BT-50 engines from August 2011 onwards. By elevating the air intake, the snorkel prevents harmful elements like dust and water from entering the vehicle's air cleaner, crucial for maintaining optimal engine health, especially in challenging environments.
A key feature of this snorkel kit is the Safari air ram. It serves a dual purpose: not only does it channel cool, clean air into the engine, but it also acts as an efficient water separator. This design ensures that rainwater is removed from the incoming air, protecting the engine during heavy rain and tropical storms.
Constructed from durable, UV stable, cross-linked polyethylene material, the genuine Safari Mazda BT-50 4x4 Snorkel body and air ram are built to the highest standards. The thickness and quality of the material provide immense physical strength, enabling the snorkel to withstand even the most rigorous off-road conditions.
Key Features of the Safari Mazda BT-50 4x4 Snorkel
- Australian Engineering: Safari Automotive's Australian-designed, moulded, and manufactured product.
- Elevated Air Intake: Protects the engine from ingesting harmful elements.
- Optimised Airflow: Enhances airflow to the 3.2L Diesel engine for improved performance.
- Water Separation: Air ram design that removes water from the air stream.
- Durability: Robust and UV-resistant snorkel and air ram for extended strength.
- Installation Guide: Includes a comprehensive fitting guide and precise template for straightforward installation.
- Manufactured in Australia from Safari’s own Industrial Spec UV Stabilised Polyethylene
- They look identical to the current versions of the Safari Snorkel
- They have a Life Time warranty*
- They primarily suit current model vehicles.
Specifications
- Fits vehicle year to: 2019
- Fits vehicle year to month: 12
- Fits vehicle year from: 2011
- Fits vehicle year from month: 11
- Style: V-SPEC
- Model: SS985HF
- Material type: UV Stabilised Polyethylene
- Fitment side: Drivers Side
- Fitting time approx: 2.5 Hr
Vehicle Compatibility Guide
| Make | Model | Series | Year From | Year To | Body | Engine | Engine Capacity | Variant | Drivetrain | Cylinders |
|---|---|---|---|---|---|---|---|---|---|---|
| MAZDA | BT-50 | UP | 2011 | 2019 | Ute | P5-AT | 3.2L | MZ-CD | 5 | |
| MAZDA | BT-50 | UP | 2011 | 2019 | Cab Chassis | P5-AT | 3.2L | MZ-CD | 5 | |
| MAZDA | BT-50 | UP | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT | Manual | 5 |
| MAZDA | BT-50 | UP | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT, XTR FREESTYLE | Auto/Manual | 5 |
| MAZDA | BT-50 | UP | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT | Manual | 5 |
| MAZDA | BT-50 | UP | 2011 | 2019 | Ute | P5AT | 3.2L | GT, XT, XTR | Auto/Manual | 5 |
| MAZDA | BT-50 | UP | 2011 | 2019 | Ute | P5AT | 3.2L | XT, XTR | Auto/Manual | 5 |
| MAZDA | BT-50 | UP | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT FREESTYLE CAB | 5 | |
| MAZDA | BT-50 | UP | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT FREESTYLE CAB | 5 | |
| MAZDA | BT-50 | UP | 2011 | 2019 | Ute | P5AT | 3.2L | XTR FREESTYLE CAB | 5 | |
| MAZDA | BT-50 | UP | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT | Manual | 5 |
| MAZDA | BT-50 | UR | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT FREESTYLE CAB | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Ute | P5AT | 3.2L | XT, XTR | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT FREESTYLE CAB | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Ute | P5AT | 3.2L | XT, GT, XTR | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Ute | P5AT | 3.2L | XTR FREESTYLE CAB | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT FREESTYLE CAB | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Ute | P5AT | 3.2L | XT, XTR | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT FREESTYLE CAB | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Ute | P5AT | 3.2L | XT, GT, XTR | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Cab Chassis | P5AT | 3.2L | XT | 5 | |
| MAZDA | BT-50 | UR | 2011 | 2019 | Ute | P5AT | 3.2L | XTR FREESTYLE CAB | 5 |
Safari Snorkel Mazda BT-50 4x4 Kit - Parts List
Mazda BT-50 4WD Snorkel for 08/2011 Onwards 3.2L Diesel Models - Safari Automotive Mazda BT-50 4x4 Snorkel Part Number SS985HF
| ITEM | PART NO. |
DESCRIPTION |
QTY |
|---|---|---|---|
| 1 | 685-133-000 | BODY - SNORKEL (SS985HF) | 1 |
| 2 | 000-135-800 | 3 ½" AIR RAM ASSEMBLY | 1 |
| 3 | 685-032-000 | BRACKET - UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) | 2 |
| 5 | 000-951 | SCREW - S/T - 4.2mm x 13mm - S/S | 3 |
| 6 | 000-960 | INSERT - PLASTIC | 3 |
| 7 | 000-110 | STUD - 8mm x 1.25 x 25mm - S/S | 4 |
| 8 | 000-311-300 | WASHER - BODY - 8mm x 30mm - S/S | 4 |
| 9 | 000-205-300 | NUT - NYLOC - 8mm x 1.25mm - S/S | 4 |
| 10 | 685-024-000 | HOSE - AIR ENTRY | 1 |
| 11 | 000-908 | CLAMP - HOSE - 70/90mm | 1 |
| 12 | 000-1911 | CLAMP - HOSE 100/120mm | 1 |
| 13 | 000-914/B | CLAMP - HOSE - SIZE 56 (BLACK) | 1 |
| 14 | 685-017-000 | TEMPLATE - GUARD PANEL | 1 |
