Product Details
＋
Features
- ATX 24 PIN x1, EPS 4 4 PIN x1, EPS 8 PIN x1, PCI-E 6 2 PIN x4, SATA x8, Peripheral 4 pin x4
- The MWE Series comes with a standard limited manufacturing warranty of 5 years from the date of purchase for complete peace of mind.
- Compliance with latest ATX 12V V2.52 specification ensures power requirement for new age multi-core processors and Graphics card are properly met.
- All MWE Gold models have 2 EPS connectors for universal current generation motherboard compatibility.
-

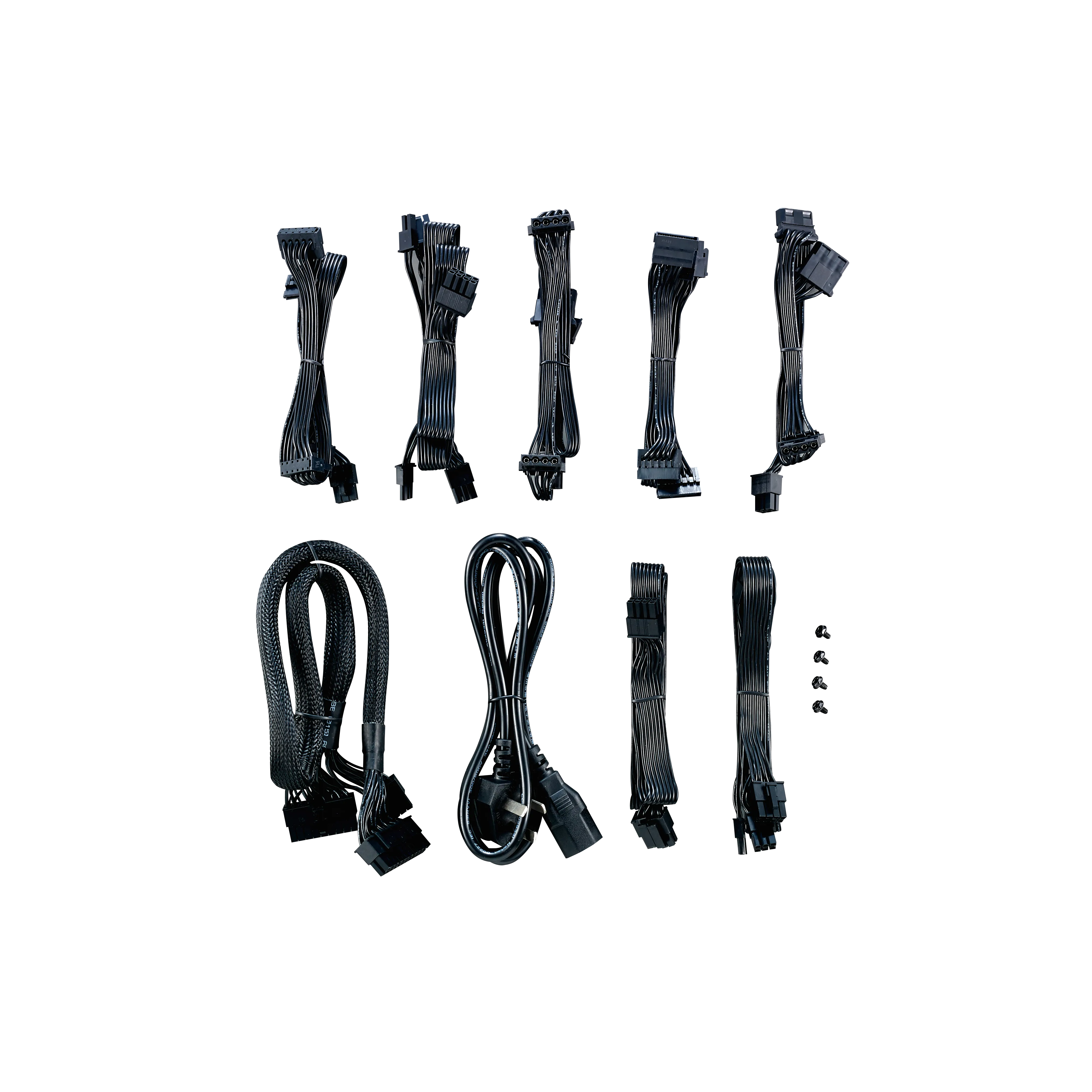

All flat modular cables take up less space and are easier to manipulate within the chassis improving ease of build and air airflow.
Specifications
| Model | MPE-6501-AFAAG-IN |
| ATX Version | ATX 12V |
| PFC | Active PFC |
| Input Voltage | 90-264V |
| Input Current | 8-4 A |
| Input Frequency | 47-63Hz |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |

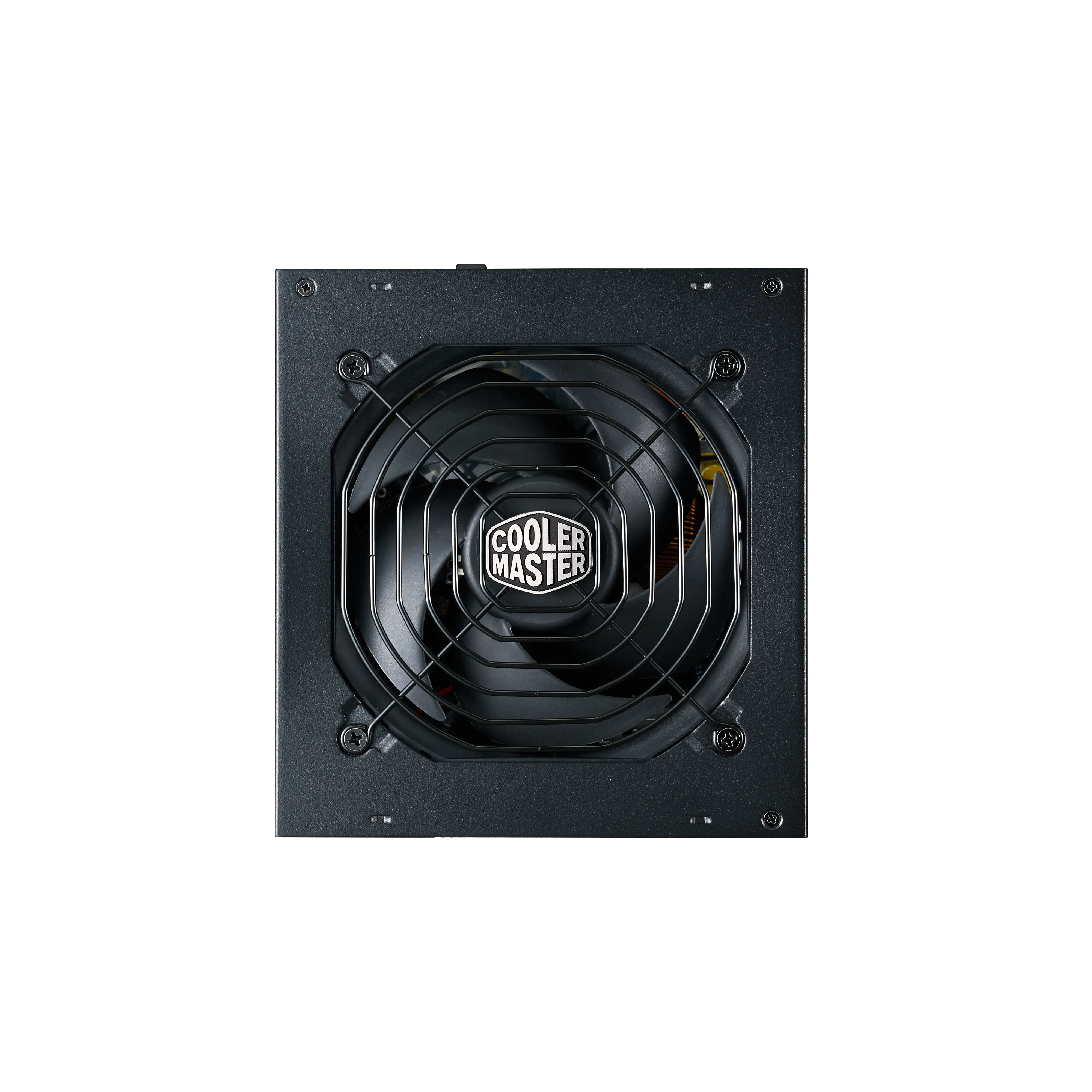

| Fan Size | 120mm |
| Fan Bearing | HDB |
| Fan Speed | 1500 RPM |
| Noise Level @ 20% | 0 dBA |
| Noise Level @ 50% | 17.9 dBA |
| Noise Level @ 100% | 23.4 dBA |
| Efficiency | 90% Typically |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | >16ms at 100% Full Load |
| MTBF | >100,000 Hours |
| Protections | OVP, OPP, SCP, UVP, OTP |
| Regulatory | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |
| ATX 24-Pin Connectors | 1 |
| EPS 4 4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 8 |
| Peripheral 4-Pin Connectors | 4 |
| PCI-e 6 2 Pin Connectors | 4 |
| Serie | MWE Gold Series |
| 80 Plus | Gold |
| Modular | Fully Modular |
| Wattage | 650 Watt |
| Warranty | 5 Years |
