Product Details
＋
Model |
MPE-C501-AFCAG-3 |
ATX Version |
ATX Rev. 3.0 |
PFC |
Active PFC |
Input Voltage |
100-240V |
Input Current |
15-7A |
Input Frequency |
50-60Hz |
Dimensions (L x W x H) |
180 x 150 x 86 mm |
Fan Size |
140mm |
Fan Bearing |
FDB |
Efficiency |
?90% @ Typical Load |
80 PLUS Rating |
80 PLUS Gold |
ErP 2014 Lot 3 |
Yes |
Operating Temperature |
0-50∞C |
Power Good Signal |
100 - 150 ms |
Hold Up Time |
?16ms at 100% Load |
MTBF |
>100,000 Hours |
Protections |
OVP, OPP, SCP, OCP, UVP, OTP, Inrush Protection |
Regulatory |
TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS |

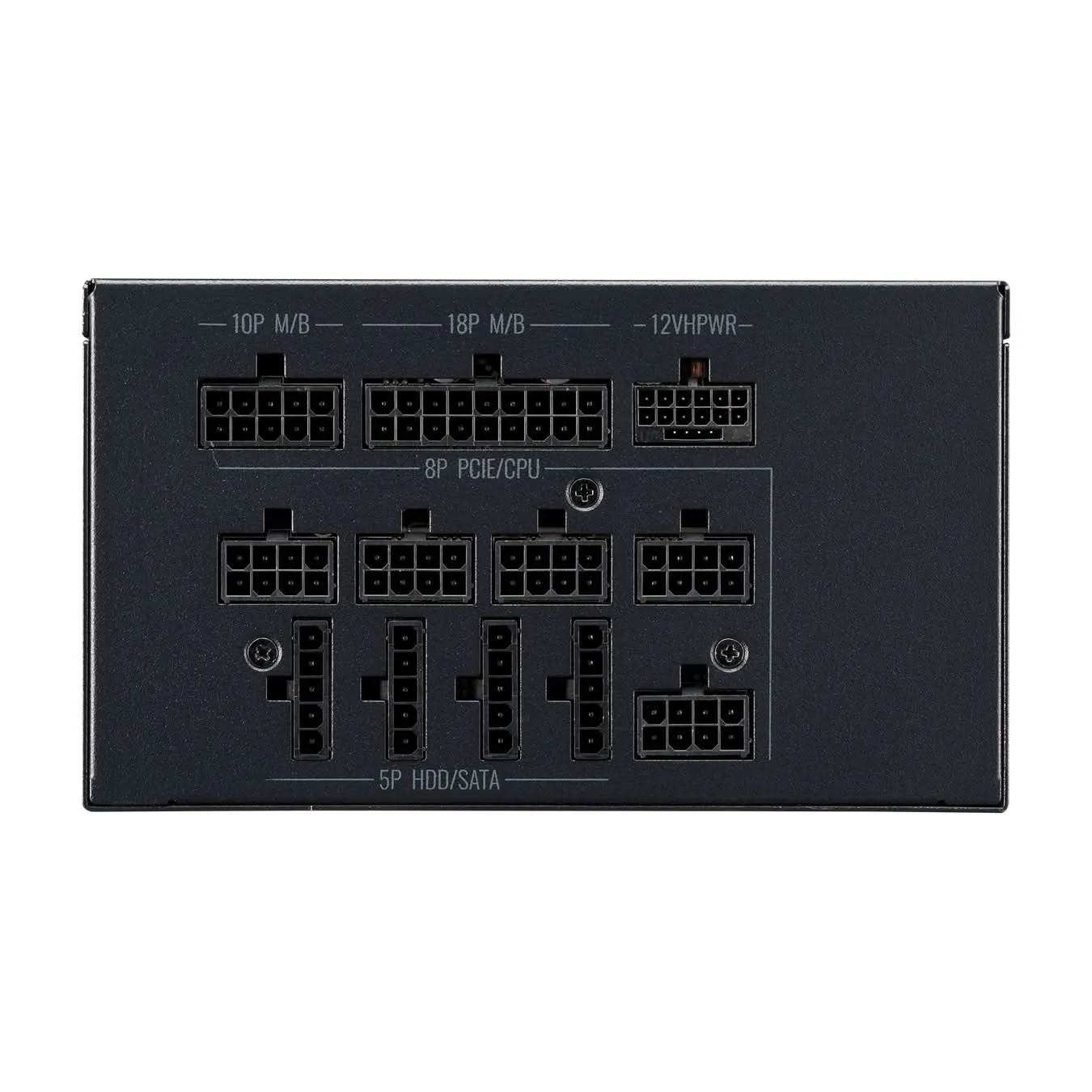

ATX 24 Pin Connectors |
1 |
EPS 4 4 Pin Connectors |
1 |
EPS 8 Pin Connector |
1 |
SATA Connectors |
12 |
Peripheral 4 Pin Connectors |
4 |
PCI-e 6 2 Pin Connectors |
3 |
12VHPWR Connector |
1 |
Series |
MWE Gold Series |
80 Plus |
Gold |
Modular |
Full Modular |
Wattage |
Above 750W |
