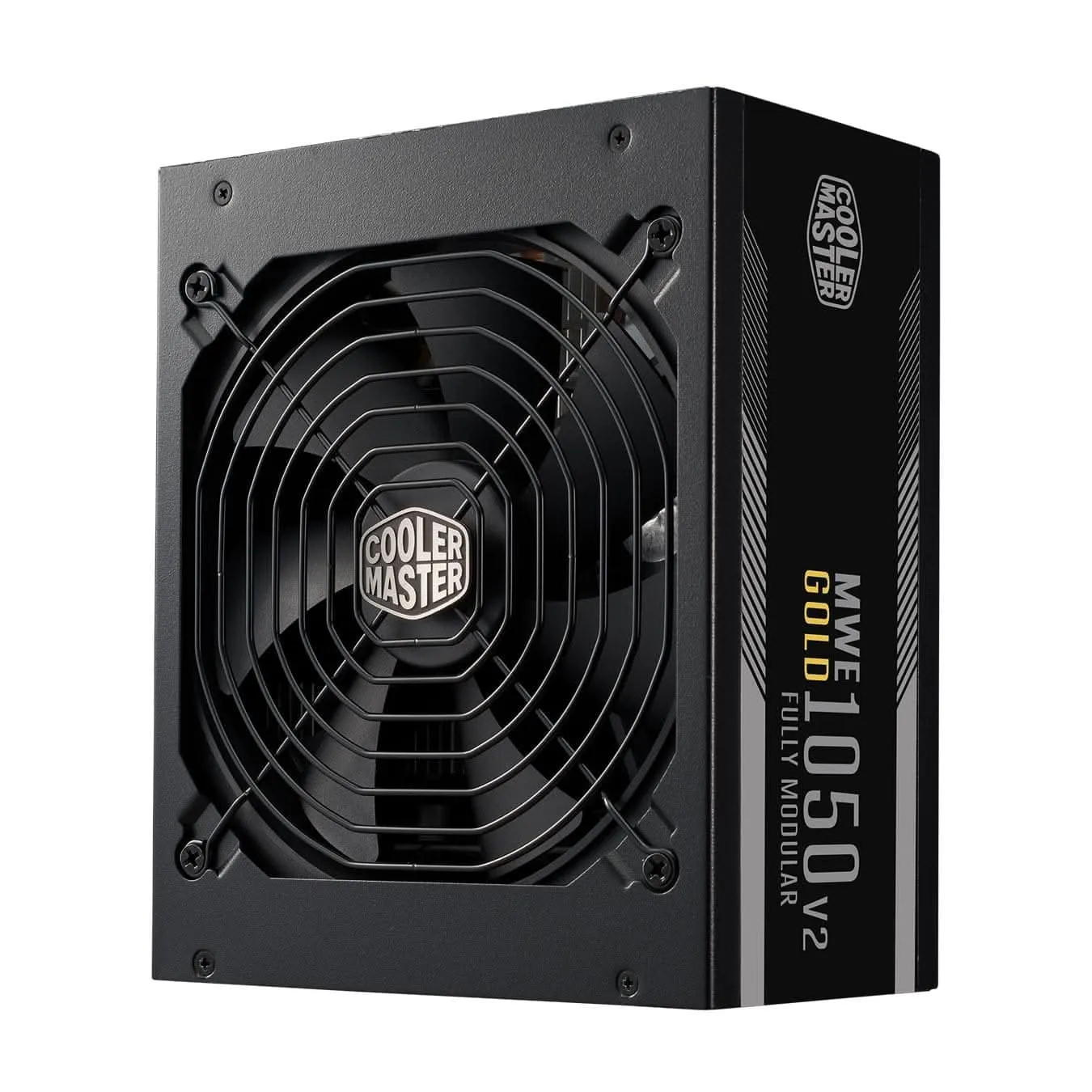

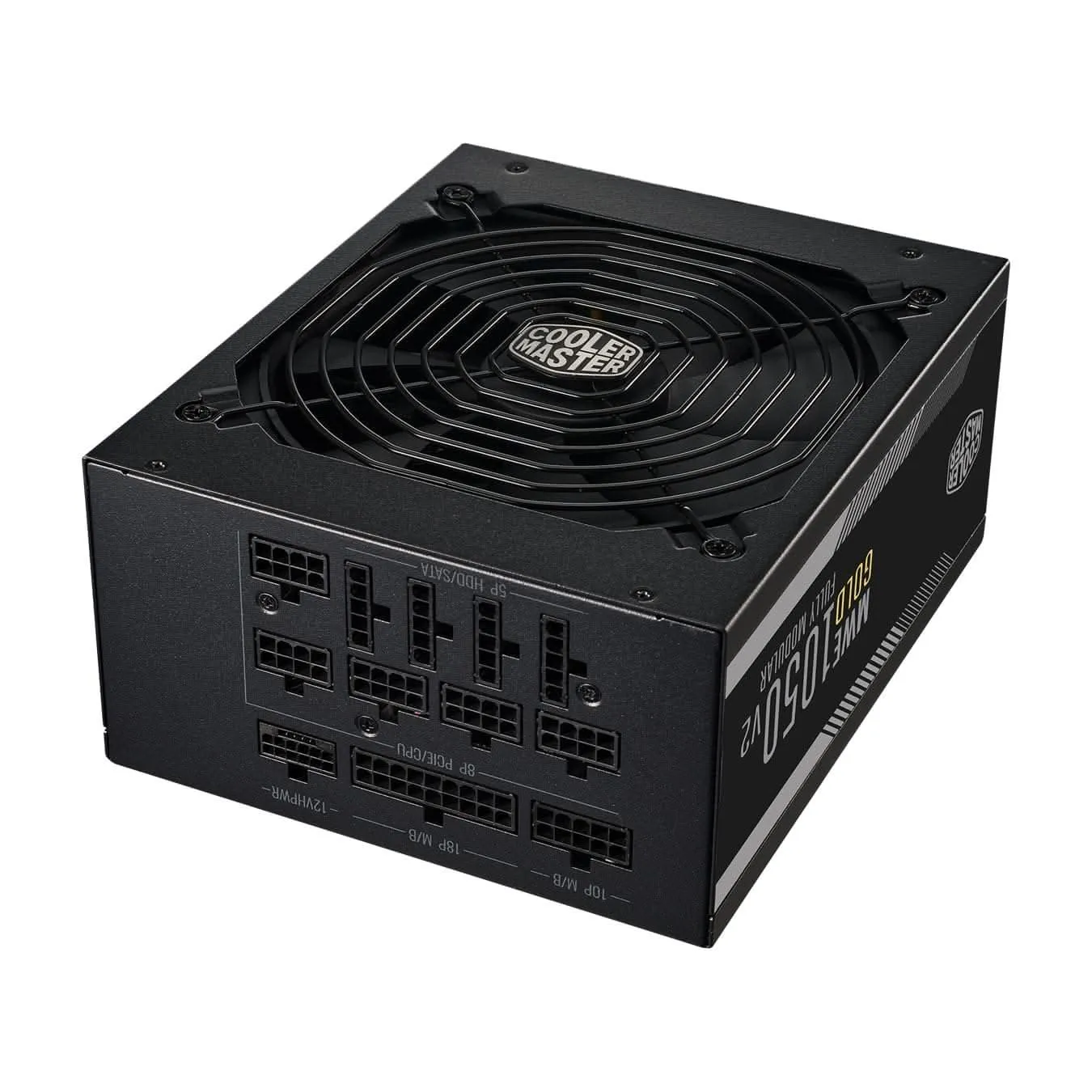

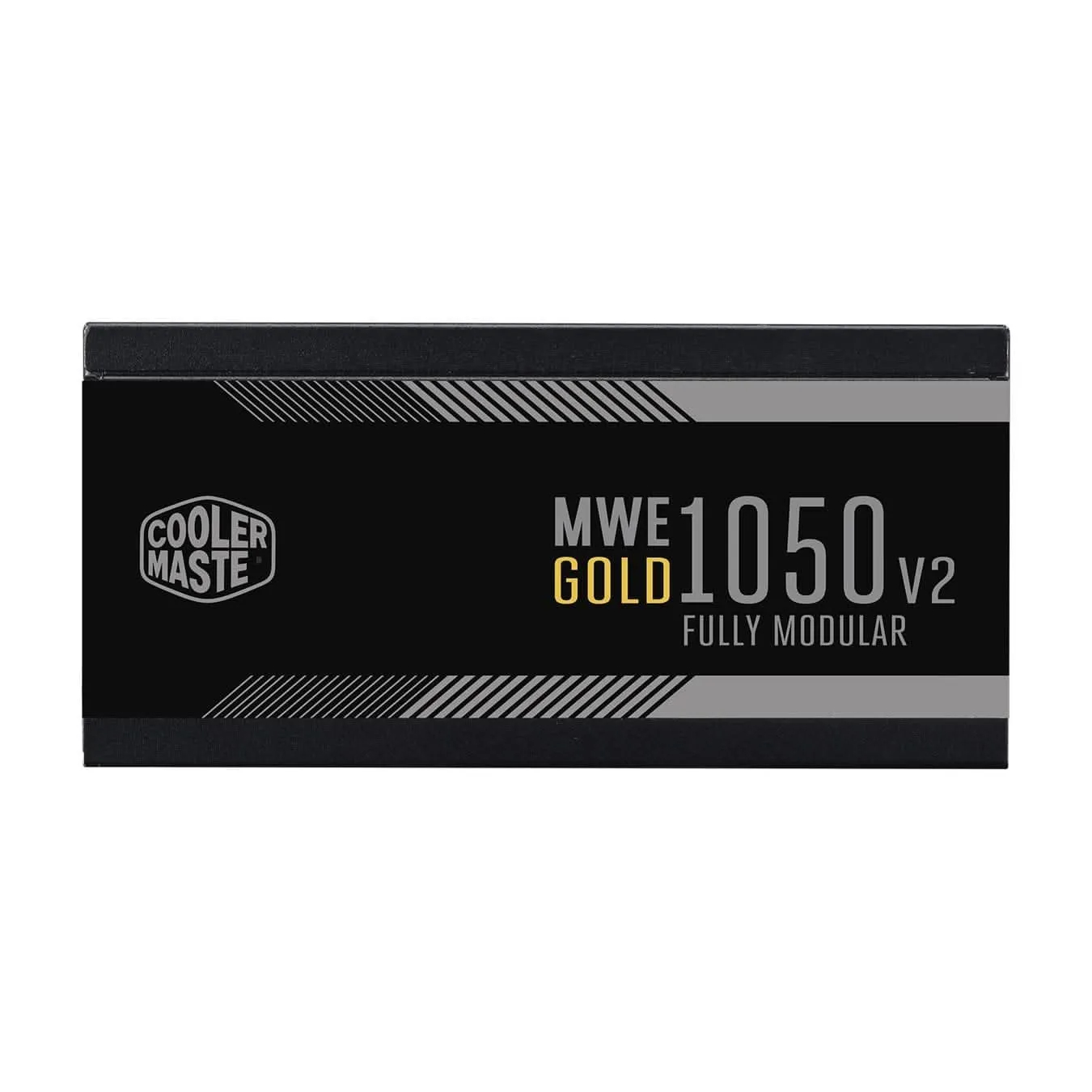

Name: COOLER MASTER 1050W MWE1050 80 PLUS GOLD V2 FULLY MODULAR ATX 3.0 SMPS
SKU: 836945

Product Details ＋

Model	MPE-A501-AFCAG-3
ATX Version	ATX Rev. 3.0
PFC	Active PFC
Input Voltage	100-240V
Input Current	13-6A
Input Frequency	50-60Hz
Dimensions (L x W x H)	180 x 150 x 86 mm
Fan Size	140mm
Fan Bearing	FDB
Efficiency	?90% @ Typical Load
80 PLUS Rating	80 PLUS Gold
ErP 2014 Lot 3	Yes
Operating Temperature	0-50∞C
Power Good Signal	100 - 150 ms
Hold Up Time	?16ms at 100% Load
MTBF	>100,000 Hours
Protections	OVP, OPP, SCP, OCP, UVP, OTP, Inrush Protection
Regulatory	TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS

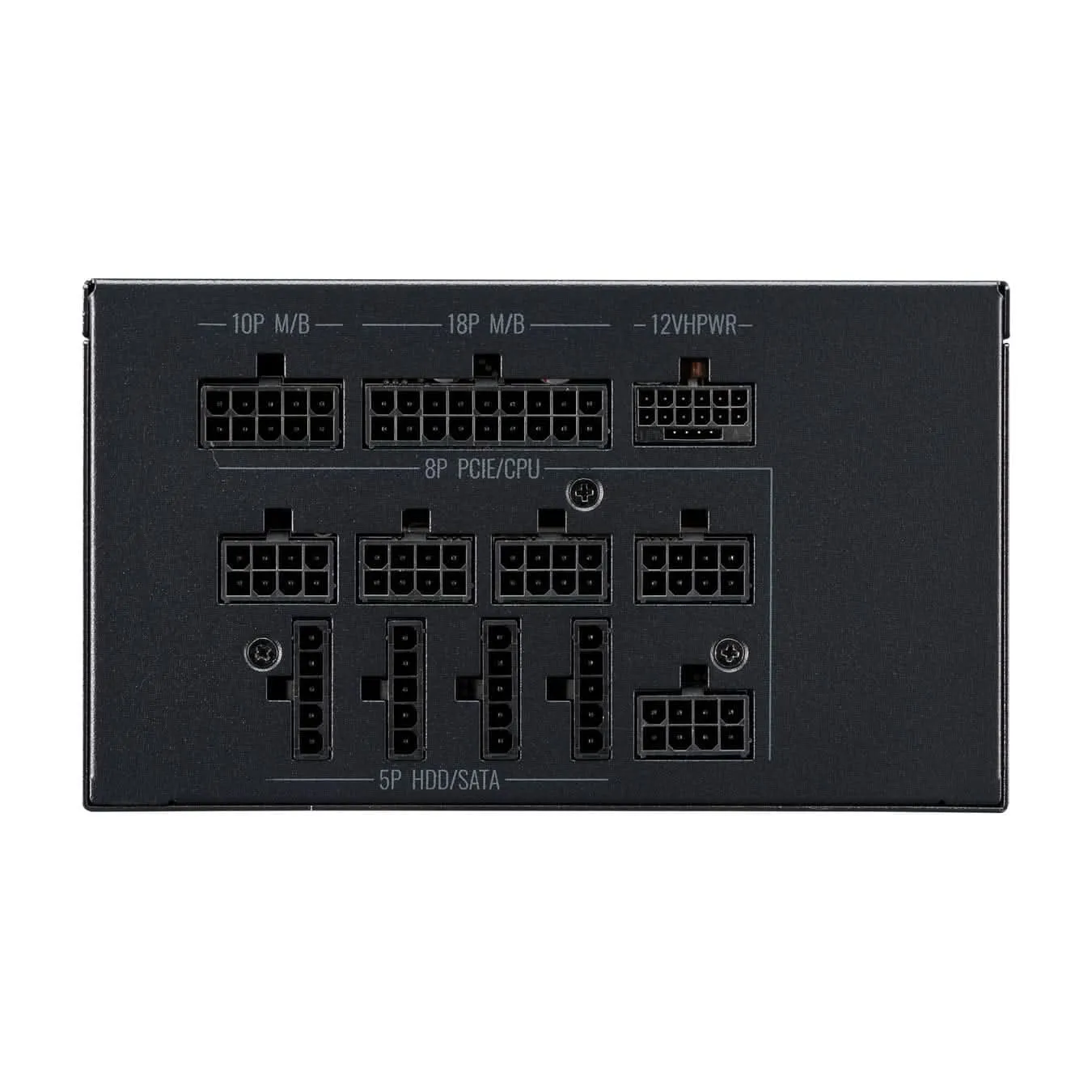

ATX 24 Pin Connectors	1
EPS 4 4 Pin Connectors	1
EPS 8 Pin Connector	1
SATA Connectors	12
Peripheral 4 Pin Connectors	4
PCI-e 6 2 Pin Connectors	3
12VHPWR Connector	1
Series	MWE Gold Series
80 Plus	Gold
Modular	Full Modular
Wattage	Above 750W

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
