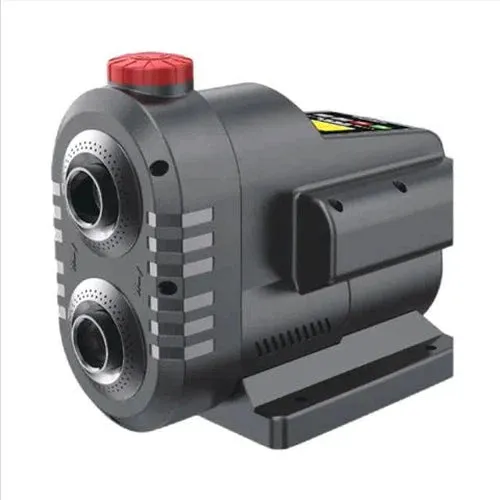

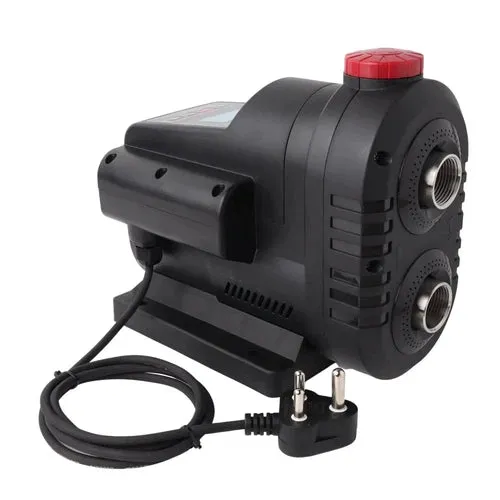

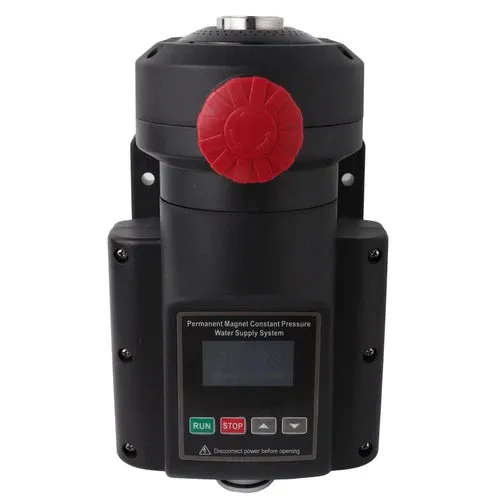

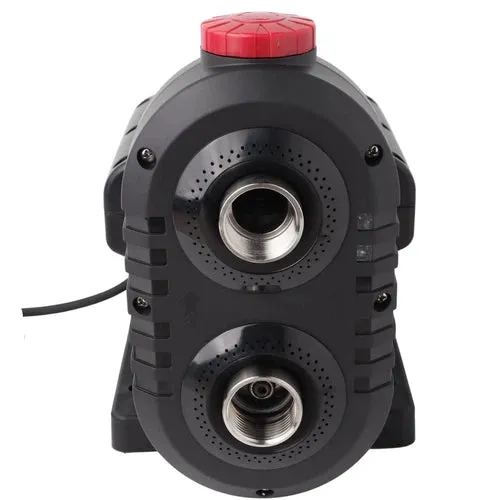

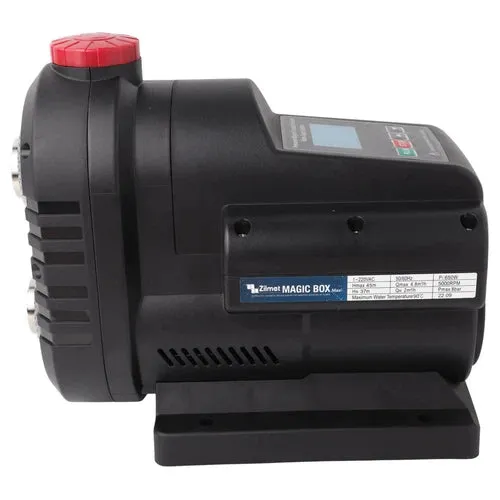

The Zilmet Magic Box Maxi is a Pressure Booster Pump with a built-in Variable Speed Drive (VSD) and features low energy consumption. It's designed for low-maintenance, easy operation, and is particularly suitable for solar system applications.

Key Features:

• Utilizes a permanent magnet brushless motor and advanced electronic control technology.
• Equipped with a high precision, reliable pressure sensor.
• Advanced stainless steel multistage pump design with a centrifugal type impeller.
• Intelligent frequency conversion for constant pressure water supply.
• Supplies pressure between 1 and 4.1bar.
• Flow range of 1000 to 4000 liters per hour.
• Built-in automatic start/stop function.
• Adjusts power usage based on water demand, enhancing energy efficiency.

Ideal Applications:

• Domestic, Industrial, and Commercial Water Supply.
• Pressure Boosting.
• Cooling Systems.
• Air Conditioning Systems.

Specifications:

• Power: 650w / .65kw, 220VAC, 50/60Hz.
• Speed: 5000RPM.
• Head (Hn): 37m.
• Flow (Qn): 2 m³/h.
• Max Pressure (Pmax): 8bar.
• Max Water Temp: 90°C.
• Protection: IP54 Class 155 (F).

Advantages:

• Silent operation.
• Multi-use functionality.
• Energy-efficient: Grade IE4 motor, saves over 30% energy compared to similar power asynchronous motors.
• Environment-friendly with electronic automatic control technology.

This pump is a high-efficiency, energy-saving solution for a variety of water supply and circulation needs.
