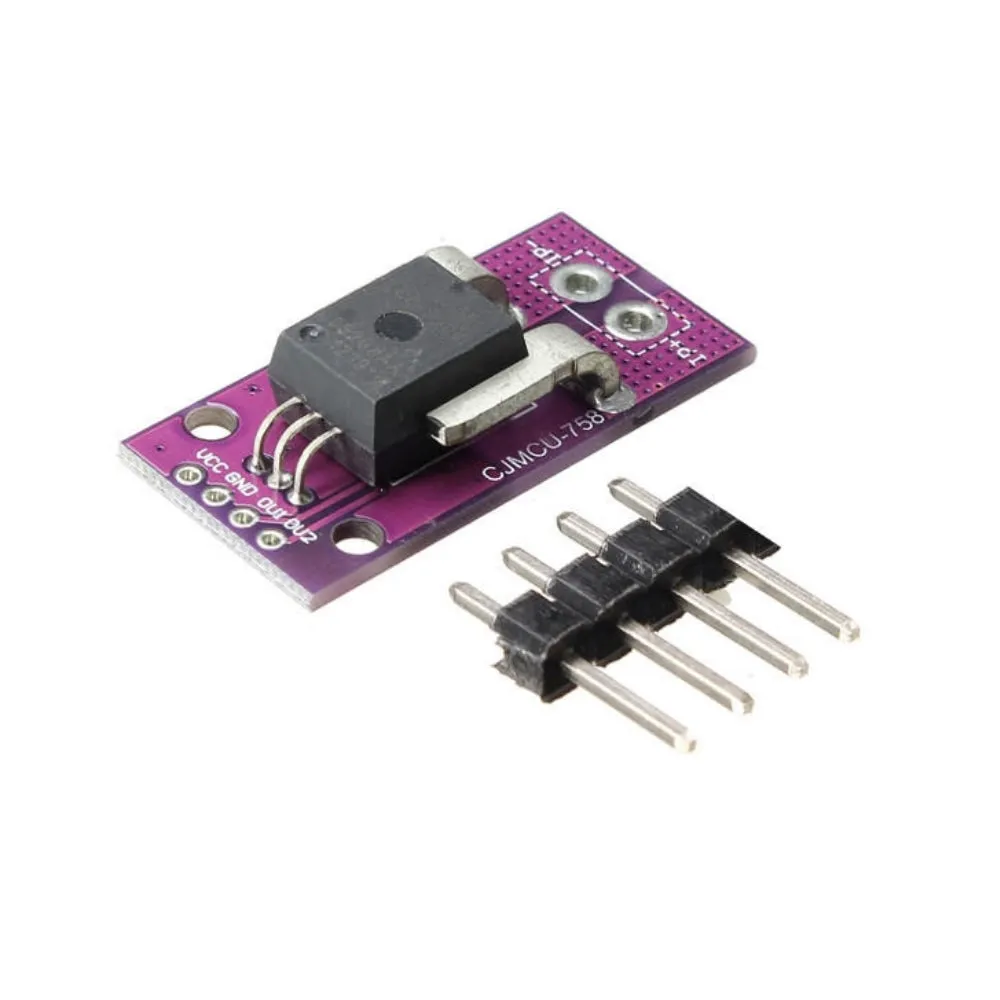

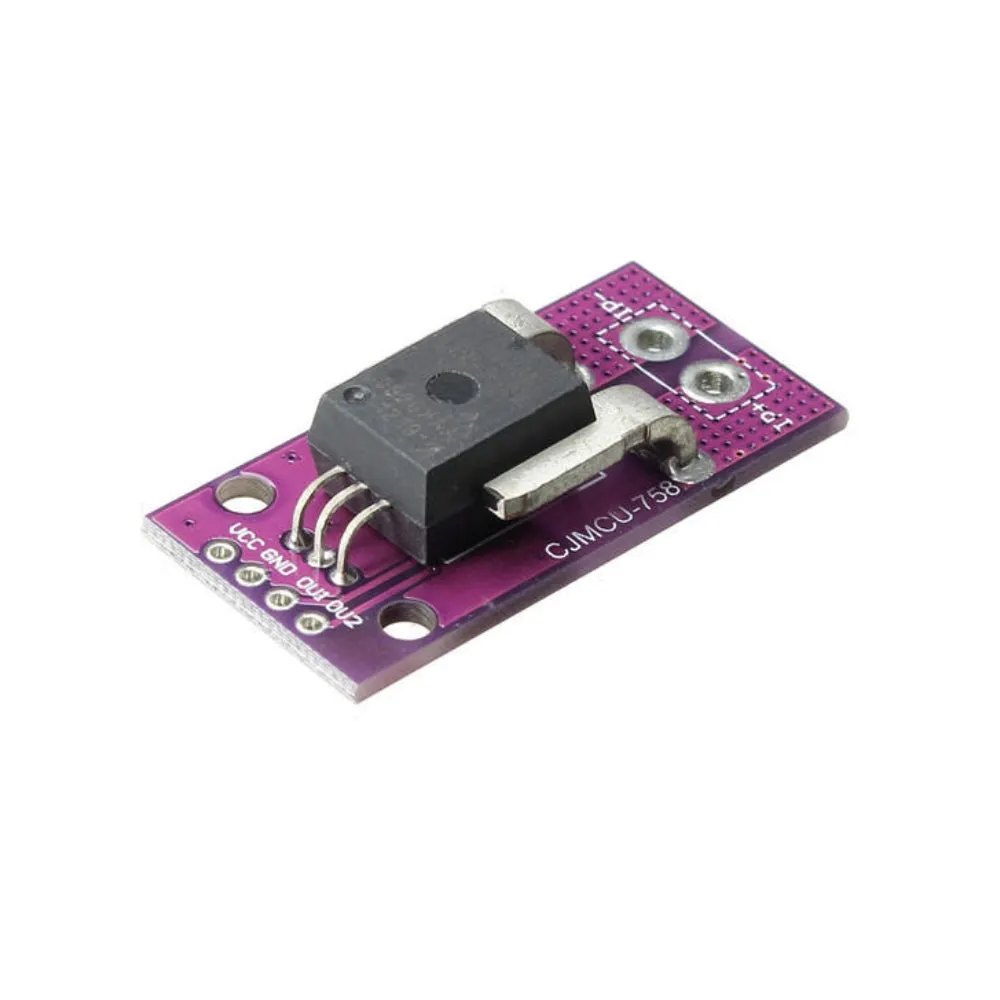

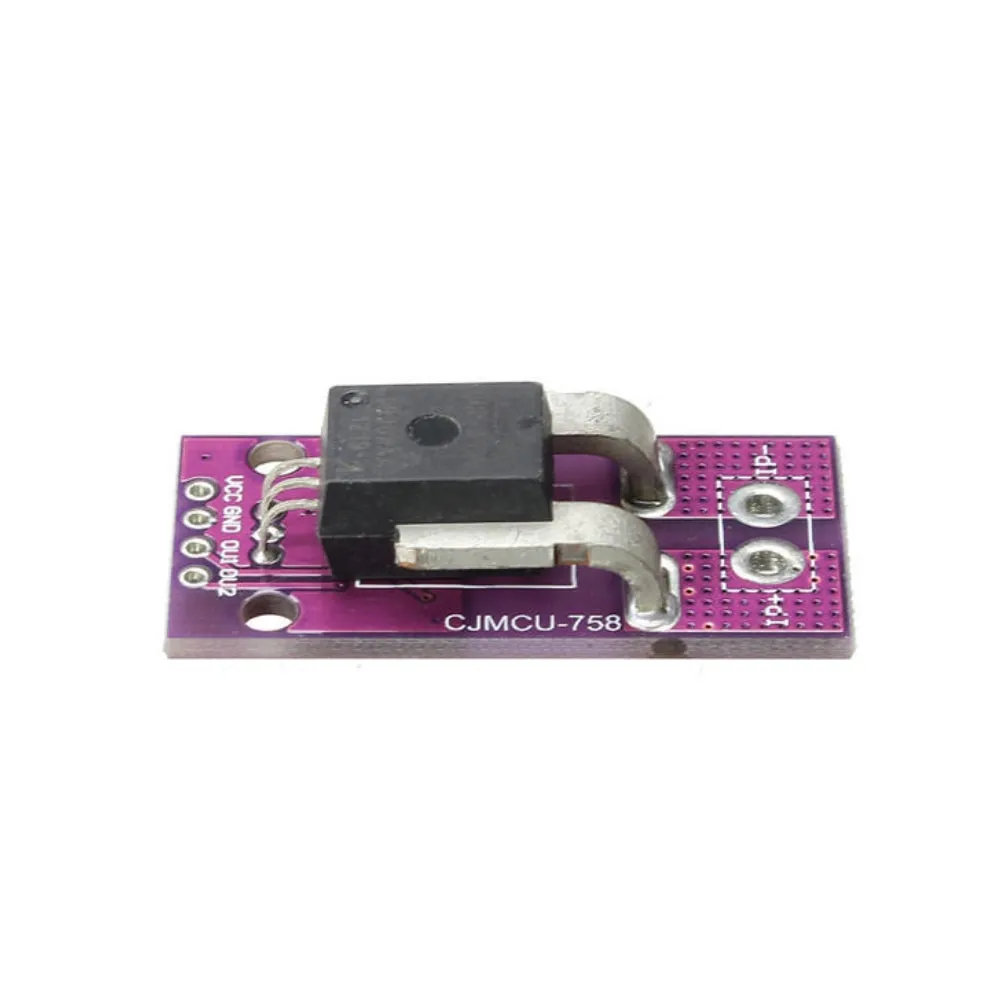

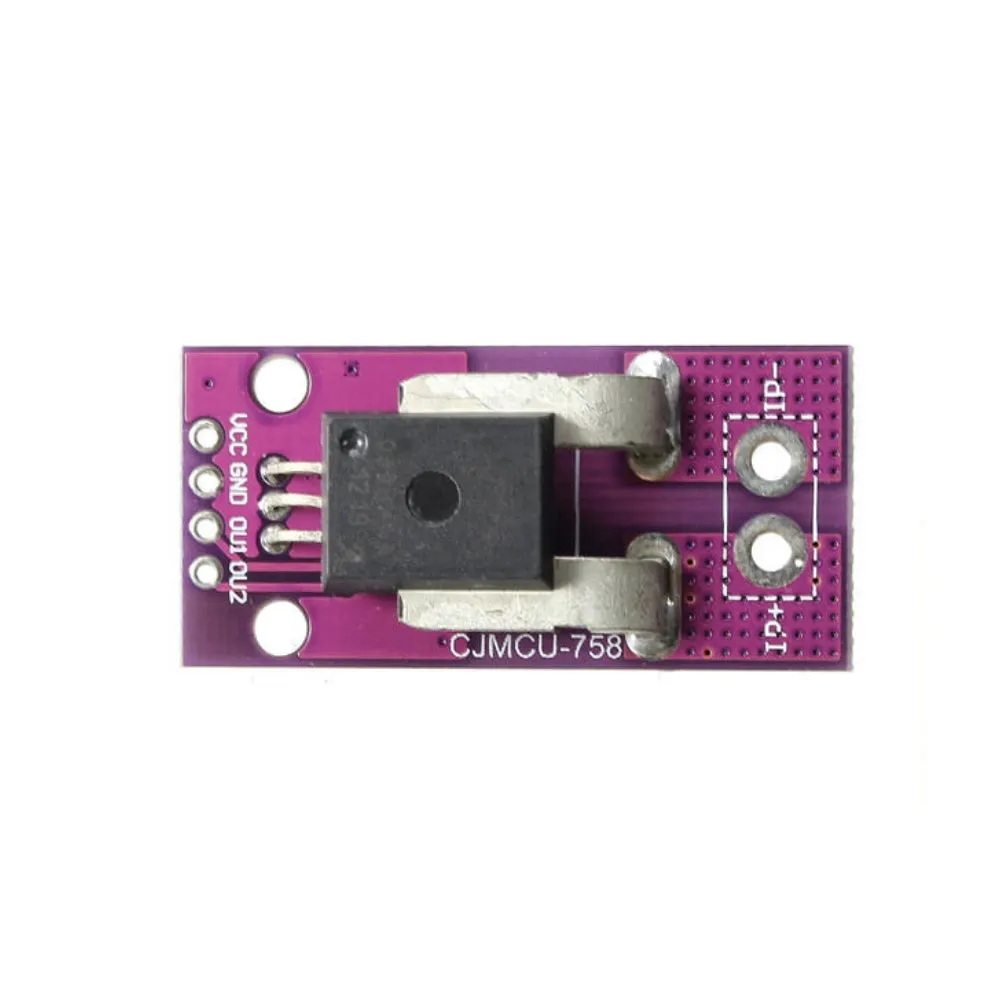

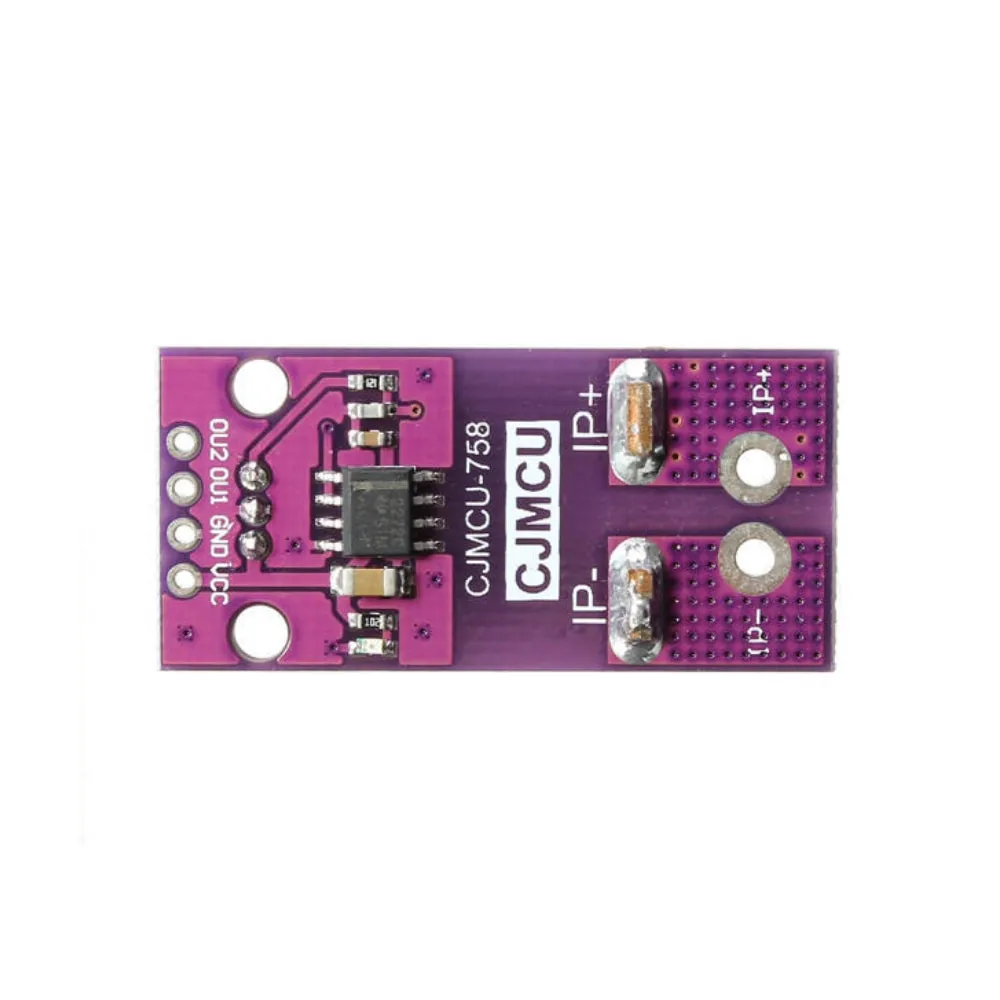

CJMCU-758 ACS758LCB-050B-PFF-T Linear Current Sensor Hall Current Module For Arduino

Features:
- Industry-leading noise performance through proprietary amplifier and filter design techniques
- Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side,
high voltage applications
- Total output error improvement through gain and offset trim over temperature
- Small package size, with easy mounting capability
- Monolithic Hall IC for high reliability
- Ultra-low power loss: 100 μΩ internal conductor resistance
- Galvanic isolation allows use in economical, high-side current sensing in high voltage systems
- 3.0 to 5.5 V, single supply operation
- 50A working current, -40℃ ~ 150 ℃ working temperature
- 120 kHz typical bandwidth
- 3 μs output rise time in response to step input current
- Output voltage proportional to AC or DC currents
- Factory-trimmed for accuracy
- Extremely stable output offset voltage
- Nearly zero magnetic hysteresis



Package Content:
1 x Linear Current Sensor Hall Current Module

Raspberry Pi is a Trademark of the Raspberry Pi Foundation




Product ID: EP00621
