Network Standard

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), IPv4, IPv6

Product Segment

AX1800 ultimate AX performance: 1201 Mbps 574 Mbps

WiFi Data Rate

802.11a: up to 54 Mbps, 802.11b: up to 11 Mbps, 802.11g: up to 54 Mbps, WiFi 4 (802.11n): up to 300 Mbps, WiFi 5 (802.11ac): up to 867 Mbps, WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps, WiFi 6 (802.11ax) (5GHz): up to 1201 Mbps

Antenna

External antenna x 4

Transmit / Receive

2.4GHz 2x2, 5GHz 2x2

Processor

1.3GHz dual-core processor

Memory

128 MB Flash, 256 MB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access), Beamforming: standard-based and universal, 1024-QAM high data rate, 20/40/80 MHz bandwidth

Operating Frequency

2.4GHz / 5GHz

Operating Mode

Access Point, AiMesh Node, Repeater, Router

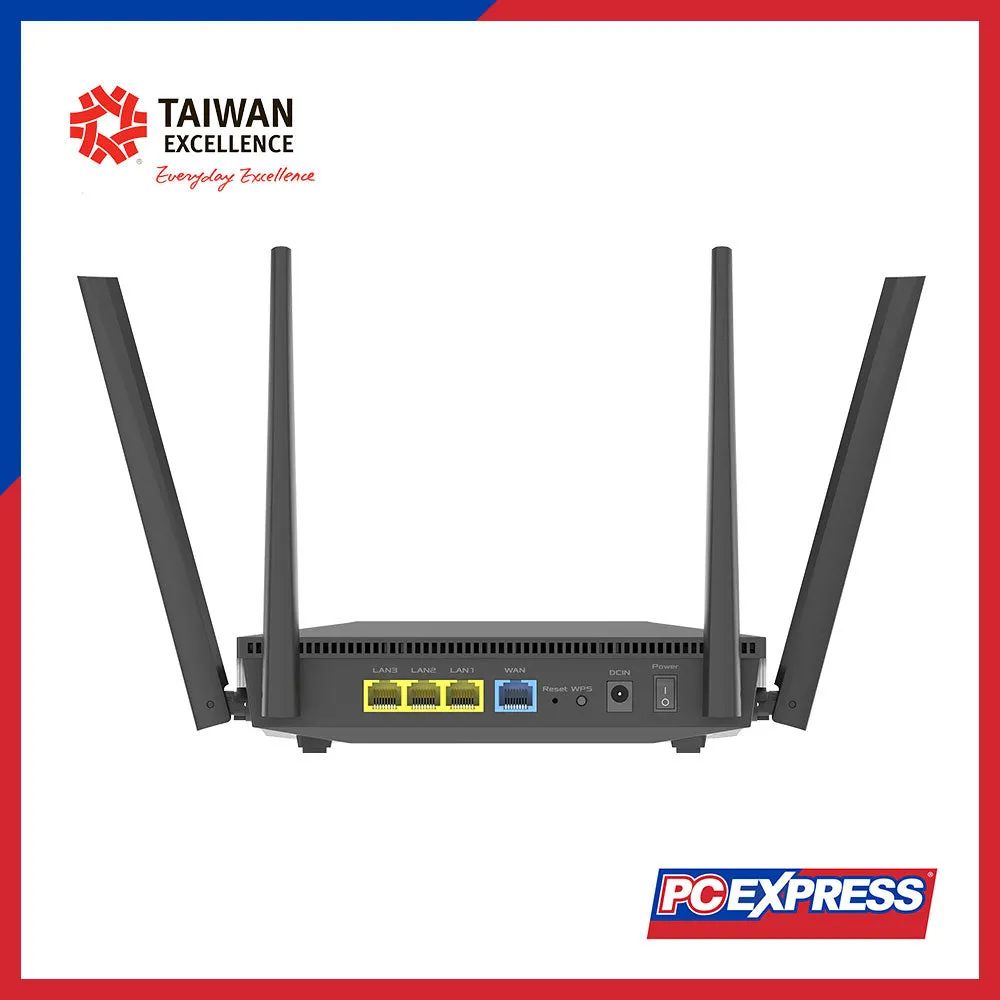

I/O Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3

Buttons

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1, WAN x 1, LAN x 3, 2.4G x 1, 5G x 1, WPS x 1

Power Supply

AC Input: 110V60Hz), DC Output: 12 V with max. 1 A current

Package Content

RT-AX52, RJ45 Ethernet Cable, Power Adapter, Quick Start Guide, Warranty Card

Product Weight (g)

298g

Product Dimensions

192 x 126.3 x 47.5 mm (WxDxH)

AiMesh

Primary AiMesh Router, AiMesh Node

Parental Control

Allow you to block access to unwanted websites and apps

Customized Internet Schedule

N/A

Guest Network

The Guest Network provides Internet connection for guests but restricts access to your local network

Security

Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

WPS

Supported

SSH

Supported

Firewall

Supported

VPN

VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP

Instant Guard

N/A

Traffic Control

Bandwidth Limiter, Traditional QoS, Traffic Monitor (Real-time, Wired, Wireless)

WAN

Internet Connection Types: PPPoE, PPTP, L2TP, Automatic IP, Static IP, Dual WAN, Port triggering, DMZ, DDNS

LAN

DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, Wake on LAN (WOL)

Wireless

UTF-8 SSID, WiFi MAC Address Filter, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming

Administration

Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log
