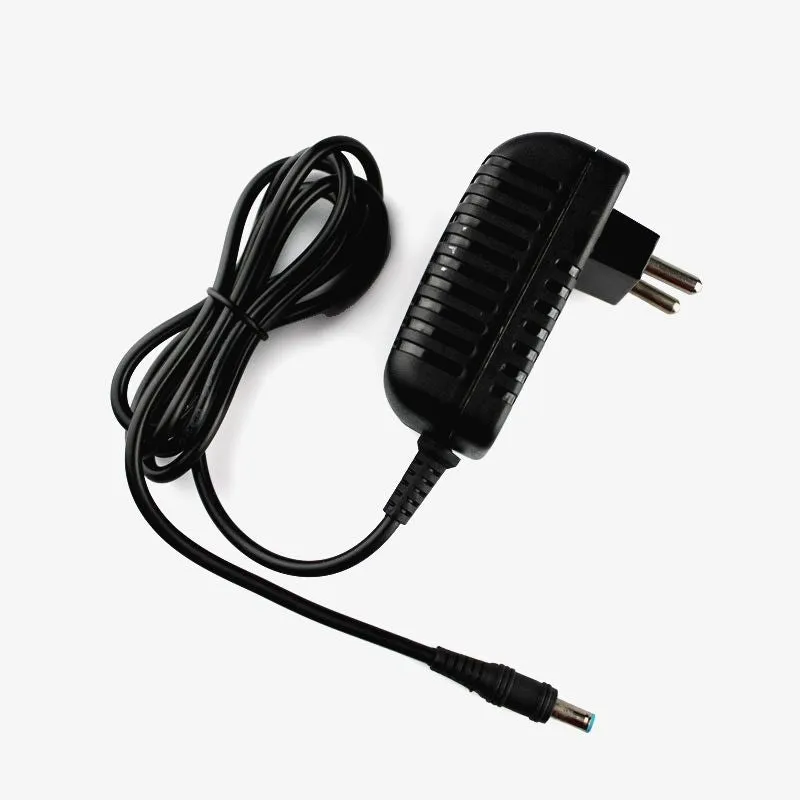

This 12V 2 Amp Power Adapter takes an AC INPUT of 100-240V and gives 12.6V 2A DC output. Comes in black color and the plastic case is ABS pure PC Fireproof materials.

Applications:

Lithium ion Battery Charger (SMPS)

Features:

• Excellent Quality
• Short Circuit, Over Voltage & Over Current Protection
• Incredibly Low Fault Rates
• No Minimum Load
• This power supply is a regulated Center Positive power supply
• It's plug design is for Indian power socket so, no plug converter is required
• Compact size & light weight
• High Reliability
• Regulated Stable Voltage
• Stabilized Output, low ripple & low interference
• Single Output Voltage
• High Efficiency & low energy consumption

Specifications :

• Product Size : 74.5 mm (L) x 43.5 mm (B) x 31 mm (H) (excluding pin height)
• height of pin is 22 mm
• Input Rated Voltage : 86Vac～264Vac
• Input Frequency Range : 50Hz～60Hz
• Input Current : 0.5A(Max)
• Input Inrush Current : <30A
• Efficiency : level IV
• DC Output Voltage : 12.6v ± 5%
• DC Output Rated Current : 2A
• DC Output Power : 25w
• Ripple and Noise : ≤80Mv
• Turn On Delay Time : ≤3S (AC:110V and full load)
• Standard : ROHS, CE, UL, ISO
• DC cable length : with 1.25 m DC cable DC connector 5.5*2.5 mm connector
• Protection : short / Over current protection, over voltage protection ,over temperature protection , CC-CV.
• Leakage Current : ≤5Ma
• Operating Temperature Range : - 10°C - 55°C
• Storage Temperature : - 25°C - 85°C

Package Includes :-

1x 12.6V 2A DC Power Supply Adapter
